ROCKDRIL ECOSKID 432 HD Item No. RCD-005
Compact Slope Drilling Rig
・Pneumatic Drifter/Optional Hydraulic Drifter
・Chassis Mounted Drill Rig
・Easy to manouver at slopes and flat surfaces
thanks to the two tire chassi design
・Designed for down the hole DTH Drilling and drag bits
Diverse range of applicable uses
・Anchoring
・Drainage Holes
・Blasting
・Seismic Exploration
・Micro-Piling
・Others

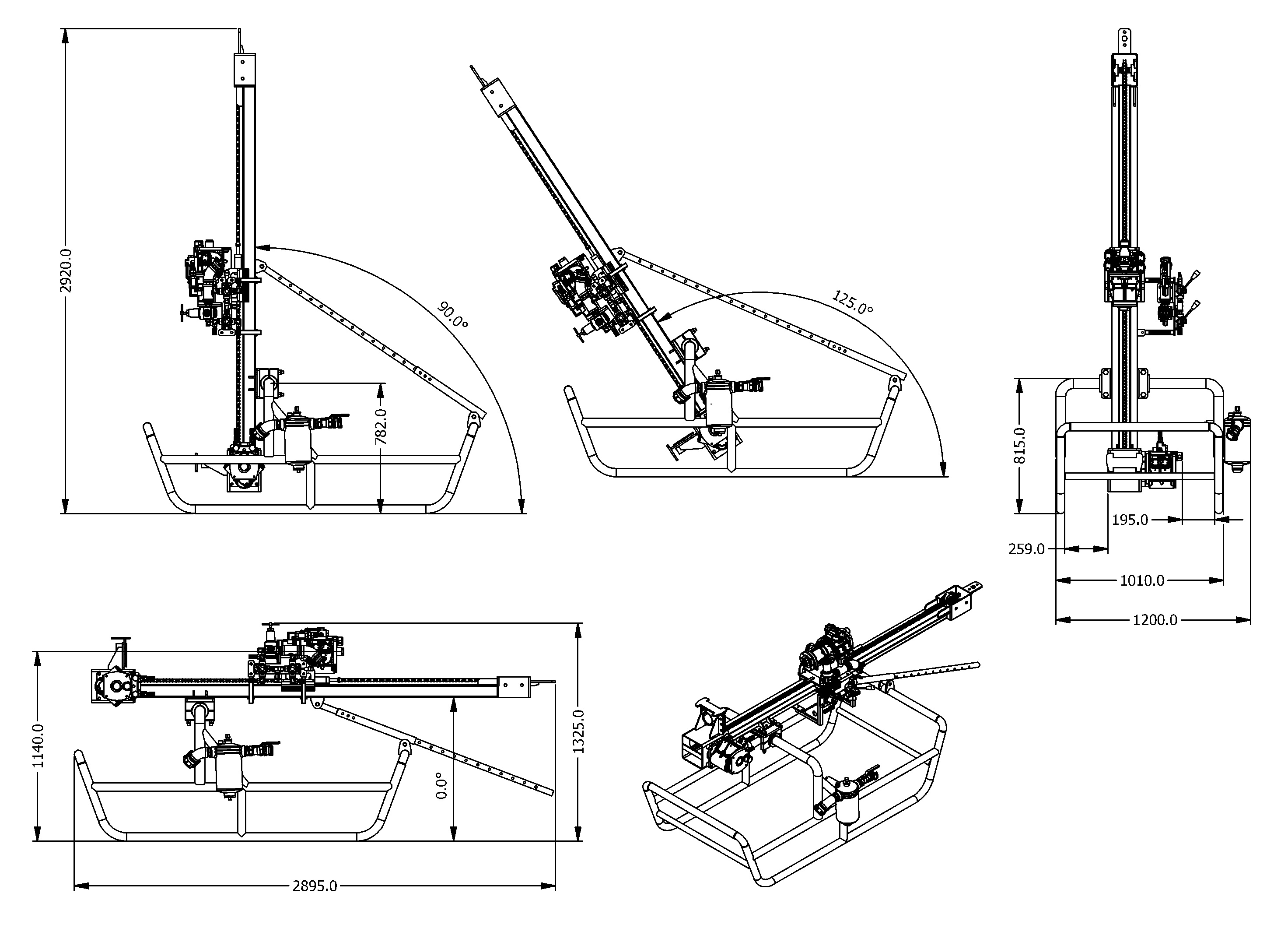

Dimensions&Weight (Approx.)
Length: 2,895mm
Width: 1,200mm
Height: 2,920mm (mast in standing position)
Height: 1,325mm (mast in plat position)
Weight: 250kg
Drilling Bit Diameter: 2"(50mm) ~ 4”(102mm)
Max. Drilling depth : 30m
(depending machine setup geological formation and Operatorskills)
- 販売単位：
- Price :
- Please contact us
●Specification
| Model | ECOSKID 432 |
| Dimensions (Approx.) | |
| Length | 2,895㎜ |
| Height (mast in standing position) | 2,920㎜ |
| Height (mast in plat position) | 1,325㎜ |
| Width | 1,200㎜ |
| Weight | 250kg |
| Air Compressor | |
| Max. Air pressure | 7 Bar (101.5 psi / 0.7MPa) |
| Drilling | |
| Max. Bit Diameter | 2"(50mm) ~ 4”(102mm) |
| Max. Drilling depth | 30m |
| Rod length | 1,500㎜ |
| Pneumatic Drifter | |
| Model | CD2R Type 4 Cylinder Airmotor |
| Rated Power | 1.62kW |
| Max. Speed | 60rpm |
| Torque | 650Nm |
| Max. Air pressure | 7 Bar (101.5 psi / 0.7MPa) |
| Air Consumption | 2000l/min. (70CFM) |
| Weight | 28.4kg |
| Thread | RD40 |
| Pneumatic Feed Motor | |
| Model | CD2A Type 4 Cylinder Airmotor |
| Rated Power | 1.62kW |
| Max. Speed | 60rpm |
| Torque | 650Nm |
| Max. Air pressure | 7 Bar (101.5 psi / 0.7MPa) |
| Air Consumption | 2000l/min. (70CFM) |
| Weight | 25kg |
| Pull-Up Force | 1,700kg |
