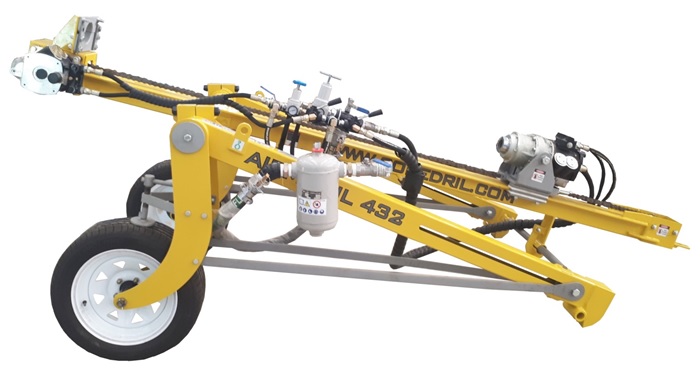

ROCKDRIL AIRMOBIL-432 Item No. RCD-004
Compact Slope Drilling Rig
・Pneumatic Drifter/Optional Hydraulic Drifter
・Chassis Mounted Drill Rig
・Easy to manouver at slopes and flat surfaces
thanks to the two tire chassi design
・Designed for down the hole DTH Drilling and drag bits

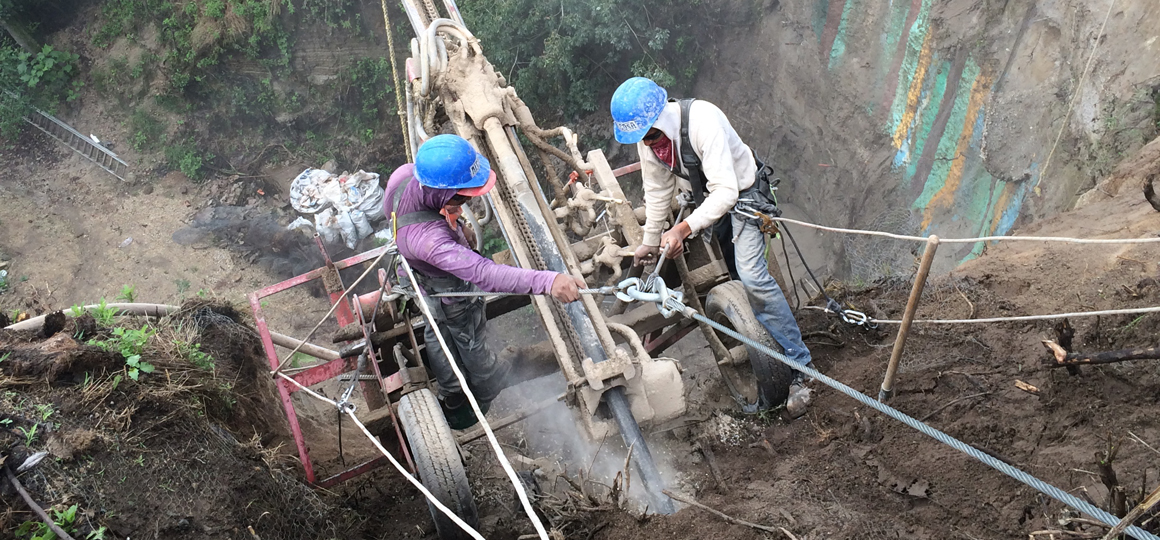

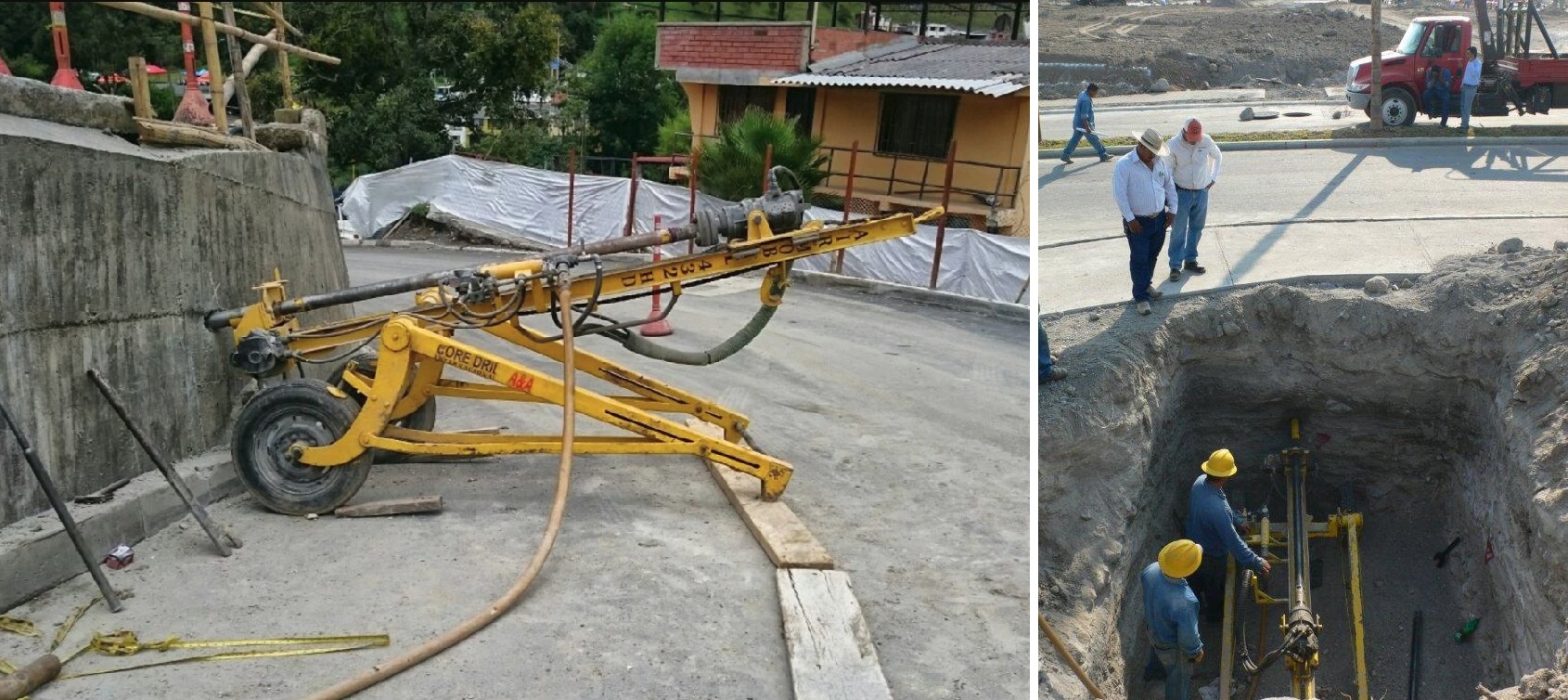

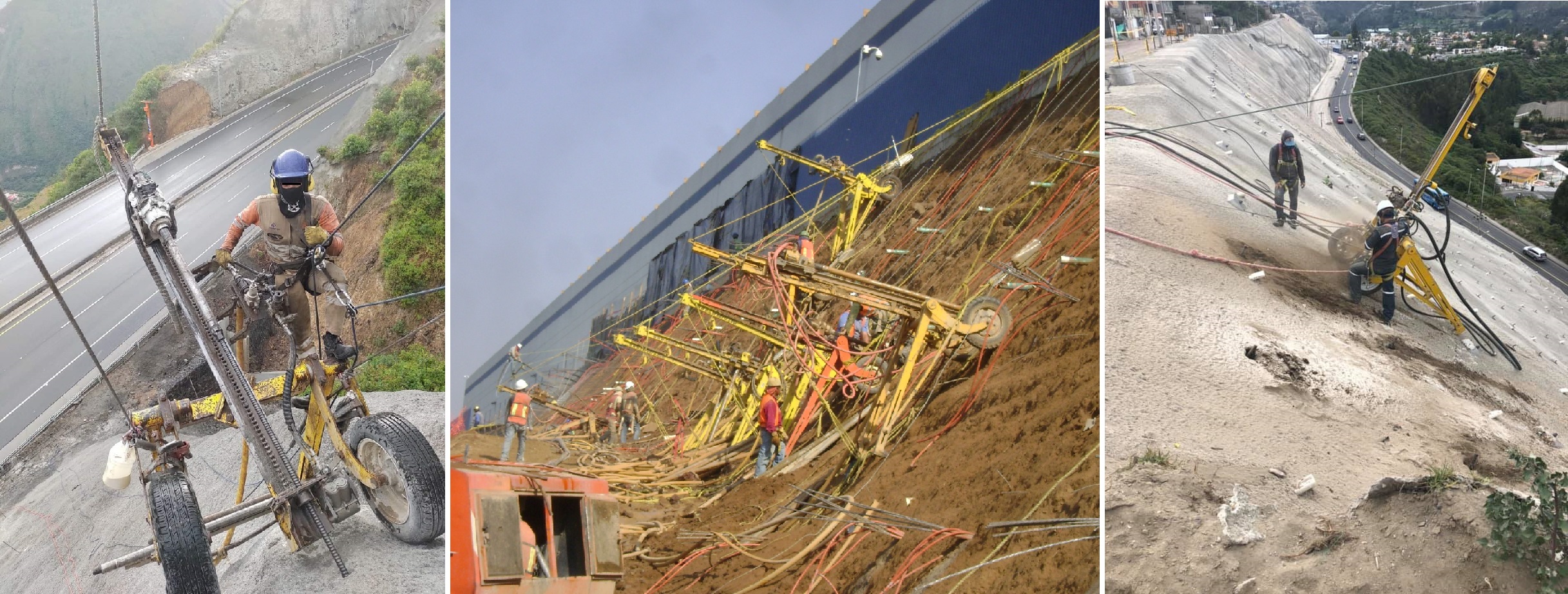

Diverse range of applicable uses
・Anchoring
・Drainage Holes
・Blasting
・Seismic Exploration
・Micro-Piling
・Others

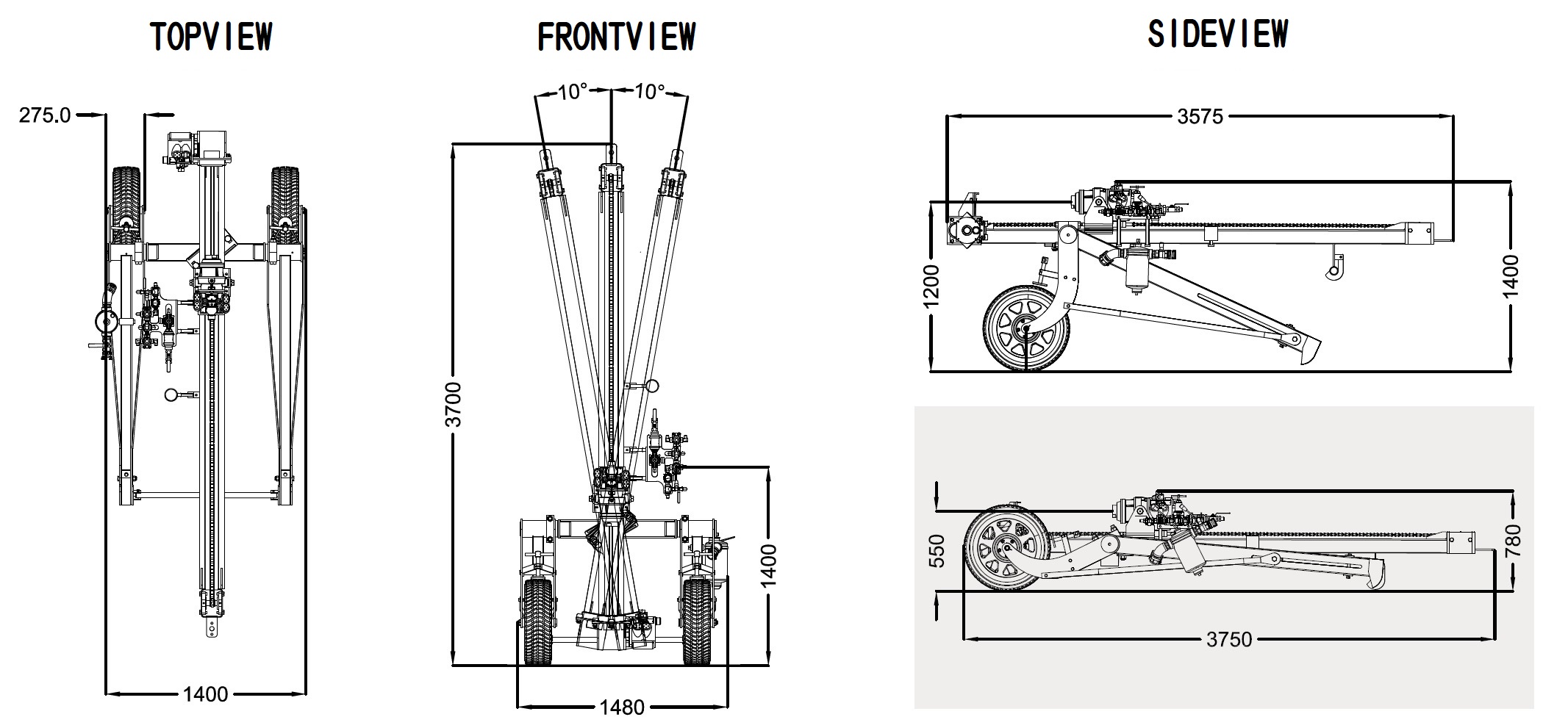

Dimensions&Weight (Approx.)
Length: 3,490mm
Width: 1,500mm
Height: 3,560mm
Weight: 436kg
Drilling Bit Diameter: 2 1/2"(64mm) ~ 6”(152mm)
Max. Drilling depth : 50m
(depending machine setup geological formation and Operatorskills)
- 販売単位：
- For price information please dont hesitate to contact us.
- Price :
- Please contact us
●Specification
| Machine | AIRMOBIL 432 |
| Dimensions (Approx.) | |
| Height | 3,575㎜ |
| Width | 1,500㎜ |
| Length | 3,560㎜ |
| Weight | 436kg |
| Drilling | |
| Max. Bit Diameter | 152㎜ (6") |
| Max. Drilling depth | 50m |
| Rod length | 2,000㎜ |
| Tilt | 10 left&right |
| Pneumatic Drifter 1.Option | |
| Model | CD2R Type 4 Cylinder Airmotor |
| Max. Speed | 60rpm |
| Torque | 650Nm |
| Max. Air pressure | 7 Bar (101.5 psi / 0.7MPa) |
| Air Consumption | 2000 l/min. (70CFM) |
| Weight | 28.4kg |
| Thread | RD40 |
| Pneumatic Drifter 2.Option | |
| Model | CD2A Type 4 Cylinder Airmotor |
| Max. Speed | 50rpm |
| Torque | 780Nm |
| Max. Air pressure | 7 Bar (101.5 psi / 0.7MPa) |
| Air Consumption | 2000 l/min. (70CFM) |
| Weight | 41.2kg |
| Thread | RD50 |
| Pneumatic Feed Motor | |
| Model | CD2R Type 4 Cylinder Airmotor |
| Rated Power | 1.62kW |
| Max. Speed | 60rpm |
| Torque | 650Nm |
| Max. Air pressure | 7 Bar (101.5 psi / 0.7MPa) |
| Air Consumption | 2000 l/min. (70CFM) |
| Weight | 23.9kg |
| Pull-Up/Down Capacity | 1,500kg |
| Head Travel | 2,300㎜ |
