Canycom tracked compact forwarder BY510 Item No. YAS-CNC-011E
Forwarder Yamabiko Ranger (BY510)
Without requiring wide work paths or loading areas, it is widely appreciated by forestry associations and forestry professionals across the Japan.
In recent years, loading of thinned wood and other materials using construction machinery grapples has been taking place. However, there has been increasing demand for balanced and safe loading with grapples even on switchback roads with steep gradients, frequent inclines, and limited turning space.
To address this, prototype machines were brought to actual sites, thorough dialogue was conducted with users, and products were conceived and developed from the user's perspective, not the manufacturer's perspective, resulting in the creation of this Forwarder Yamabiko, a reference to the mountain spirits.
For customers who wish to receive a estimate, please provide the following information when inquiring:
-Model
-Quantity
-Final delivery location (Please provide if different from the customer's address)
-Desired delivery date
*Please note that this is a made-to-order product.
- 販売単位：
- Price :
- Please contact us
| Name | Tracked Forwarder "Forest Spirit" Yamabiko | ||
| Model | BY510 W0G | BY510 W1G | |
| Type | No Winch・Hyd. Pump | With Winch・Hyd. Dump | |
| Dimensions | Length | 3180mm | |
| Width | 1995mm | ||
| Height | 2140mm | ||
| Min. Ground Clearence | 295mm | ||
| loading platform height | 725mm | ||
| loading platform length/width | 3000mm / 1100mm | ||
| Tracks | Width | 320mm | |
| ground contact length | 1400mm | ||
| Wheelbase | 1350mm | ||
| Engine | Type | Water-cooled 4-cylinder diesel | |
| Total displacement | 2434㎤(cc) | ||
| Total output | 37.4kW(50.8PS) / 2700rpm | ||
| Max. Torque | 155.0N・ｍ(15.8kgf・ｍ) / 1600rpm | ||
| Starter Method | Selfstarter | ||
| Powertrain | Transmission type | HST(2 speed motor) | |
| Reduction gear type | 2Pumps 2Motors | ||
| Break | Negative brake | ||
| Weight | 2500kg | 2650kg | |
| Max. working capacity | 3100kg | ||
| Mobility | Travel Speed | 0～10.0km/h(Fast Mode)・0～5.5km/h(Slow mode) | |
| Min. turning radius | 1.7ｍ | ||
| Gradeability | 25° | ||
| Winch Pull Capacity | ― | 800kg | |
■Features

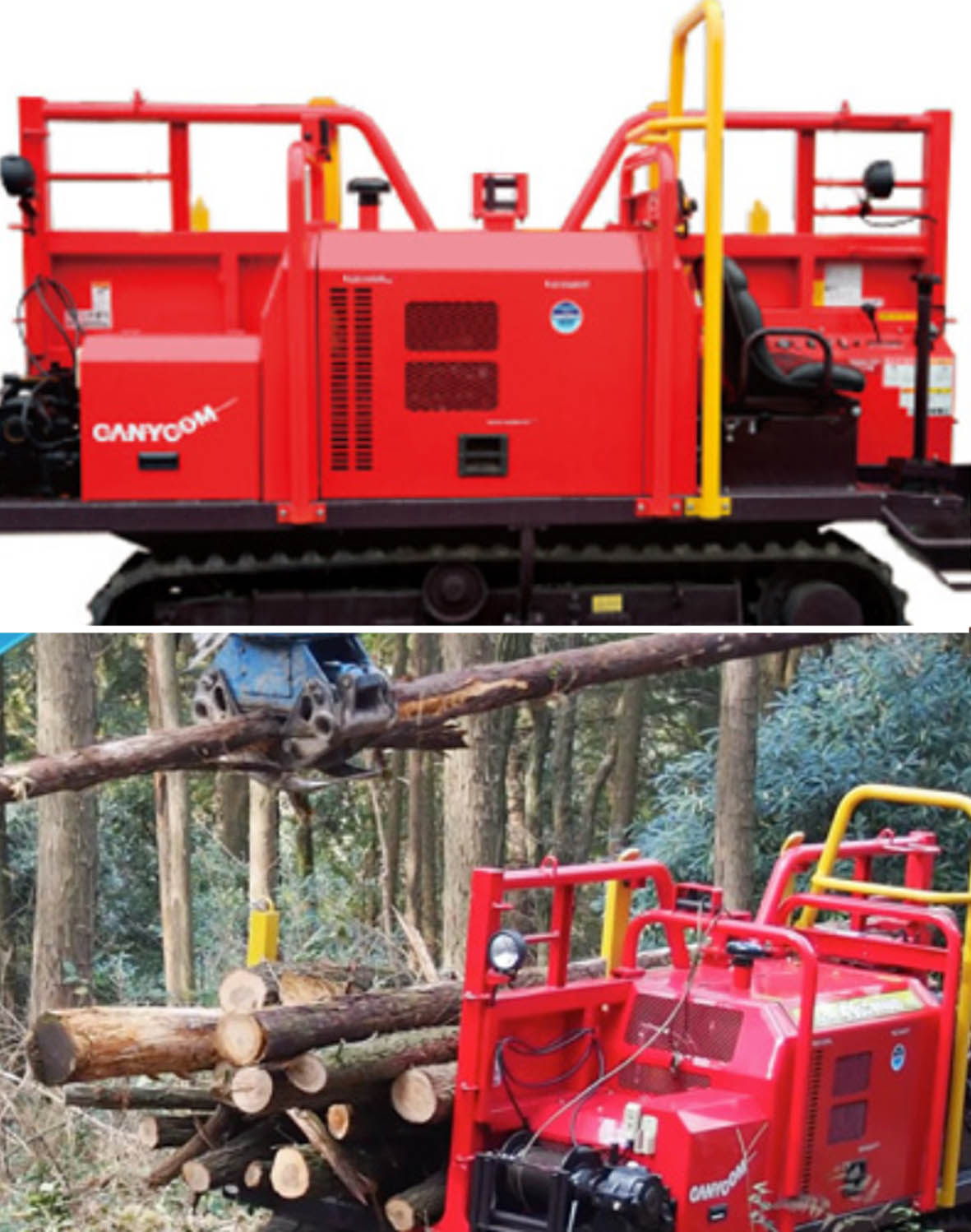

●Open Space for easy loading
With its unique arch-shaped cargo bed, loading with the grapple can be done quickly and safely.

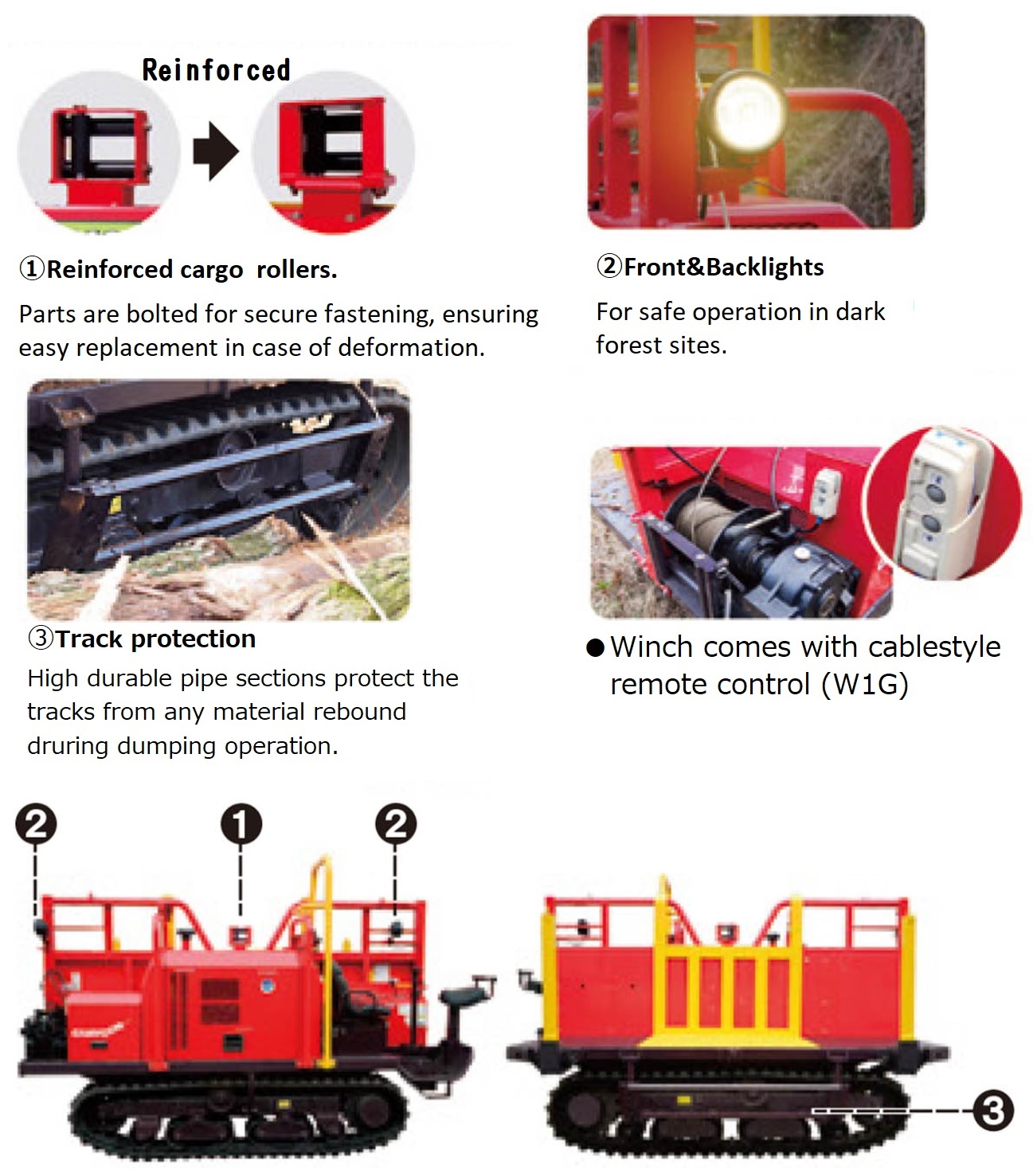

●Secure protection of the main body parts.
Smooth operations thanks to the robust guarding around the tracks.
●Robust cargo bed
The cargo bed made out of dual layers of high-tensile and corrugated steel, and the side plates also useing high-tensile steel, providing a outstading durability during intense loading work.
●Exceptional maneuverability
Despite its lightweight, the Yamabiko offers a substantial payload capacity of 3.1 tons (6000lbs) without losing any of its maneuverability. Moreover, its outstanding high-speed traversability, reaching a maximum speed of 10 km/h (unloaded), reduces cycle times for transporting materials like thinning wood.

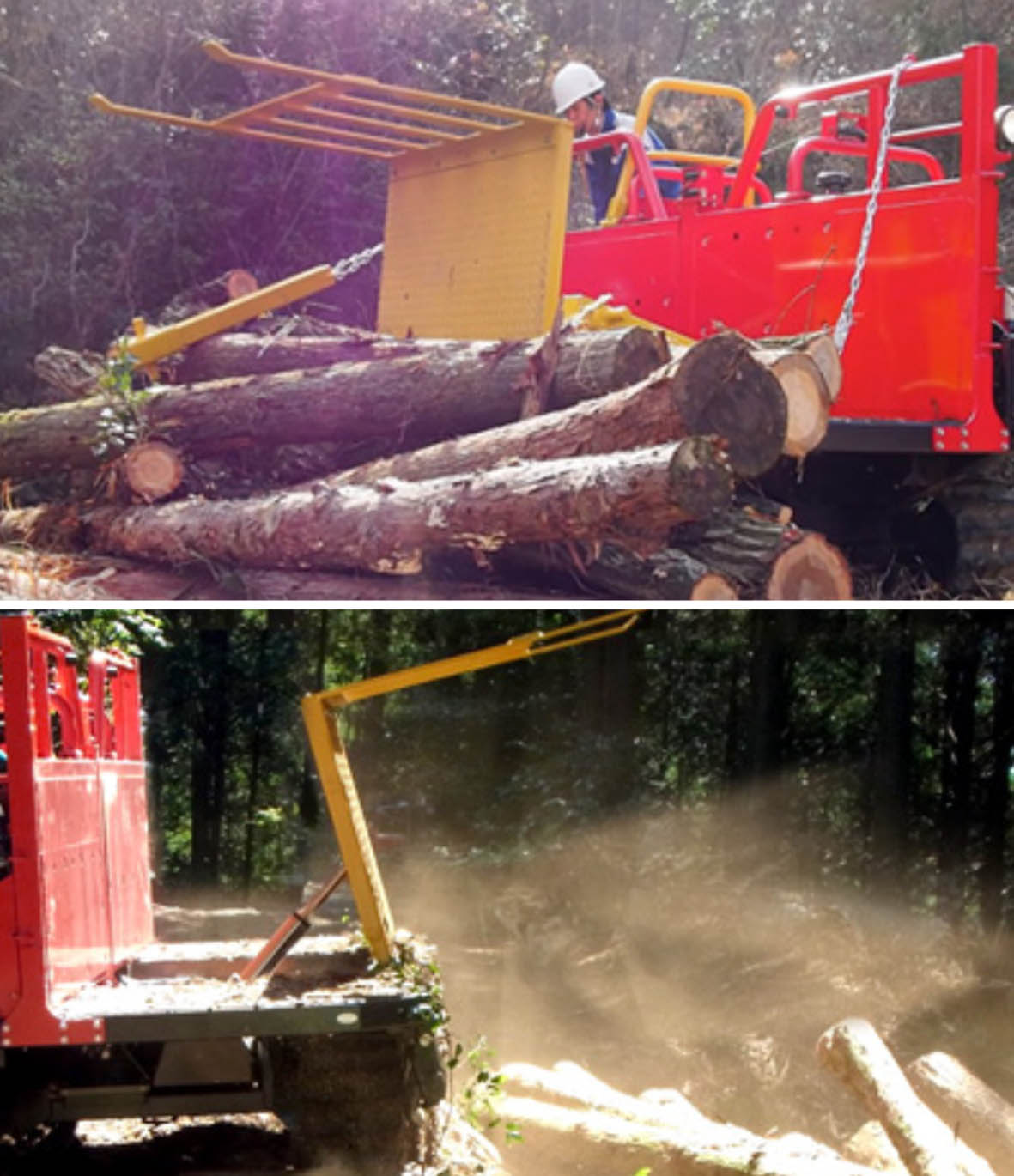

●90-degree dump angle for the cargo bed
The hydraulic side poles and dump mechanism efficiently discharges the all loaded materials and ensures quick and easy operations.
●Maneuverability and operability
Powered by a watercooled 46 horsepower diesel engine, the Yamabiko demonstrates outstanding maneuverability and operability, conquering rough forest terrain and muddy ground. Combined with a body width of 1945mm, it boasts agile movements and maneuverability even on narrow forest roads.
●Well-balanced chassis also for long loads
The chassis is designed with a wheelbase of 1400mm and a body center distance of 1300mm, providing a balanced body dimension and a sideways loading method. This setup boasts stability for transporting long materials up to 12 meters. Particularly, compared to rear-loading vehicles, the overall length, including the materials, is shorter, reducing damage to forest roads and allowing for easier maneuverability in narrow forest pathways.
