Handheld Breaker BH163 Maruzenkogyo Item No. MAR-034E
Hydraulic Handheld Breaker for chipping
･Highest power in this class!
･Light enough to do a great job.
Suitable for work in narrow space.
･Suitable for work in cold weather.
Hydraulic won’t freeze up!
Please let us know if you want to ask more...
・your information(name, address, telephone number)
・quantity
・delivery address
- 販売単位：
- Price :
- Please contact us
| MODEL | BH163 |
| dimensions(mm) | 604×412 |
| weight(kg) | 16 (without tool) |
| working pressure(MPa) | 7.8～11.8 |
| maximum pressure(MPa) | 20.6 |
| oil flow(ℓ/min) | 18-22 |
| shank size | HEX 1"×4-1/4" (25×108mm) |
| coupling | 3/8inch coupler |
| hydraulic oil | ISO VG32(Standard) or ISO VG46 equivalant Abrasion Resistant Hyd. Oil |
| extension hose(m) | 1/2inch ×20 |
HOW TO USE

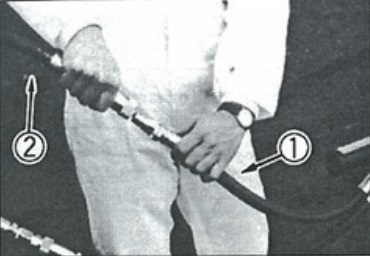

1. Connect hydraulic breaker’s standard hose ① and extension hose ②

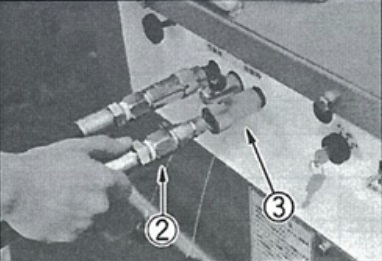

2. Connect the other side of extension hose ② to the power source ③

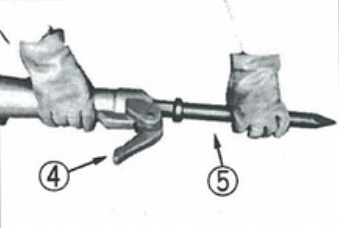

3. Unlock the latch ④on breaker, load the tool⑤ and lock the latch again.
4. Start engine in power source and let engine run for a while to warm up the machines.

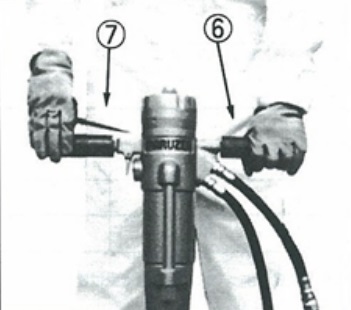

5. Clasp the handle grip⑥, bear down the breaker, clasp the control lever gently and let the breaker start running.
