Handheld Earth Drill OH-1 Maruzenkogyo Item No. MAR-009E
Hnadheld Earth Drill OH-1
for construction of foundation, sewerage, landscape gardening, etc
FEATURES
･Powerful hydraulic handheld auger drill.
･Able to change normal and reverse rotation by a lever easily.
･Able to use with not only with our power unit but also with
the power from the PTO of excavator, truck, loader etc..
Please conntact us with information below if you want to ask more...
・your information(name, address, telephone number)
・quantity
・delivery address
- 販売単位：
- Price :
- Please contact us

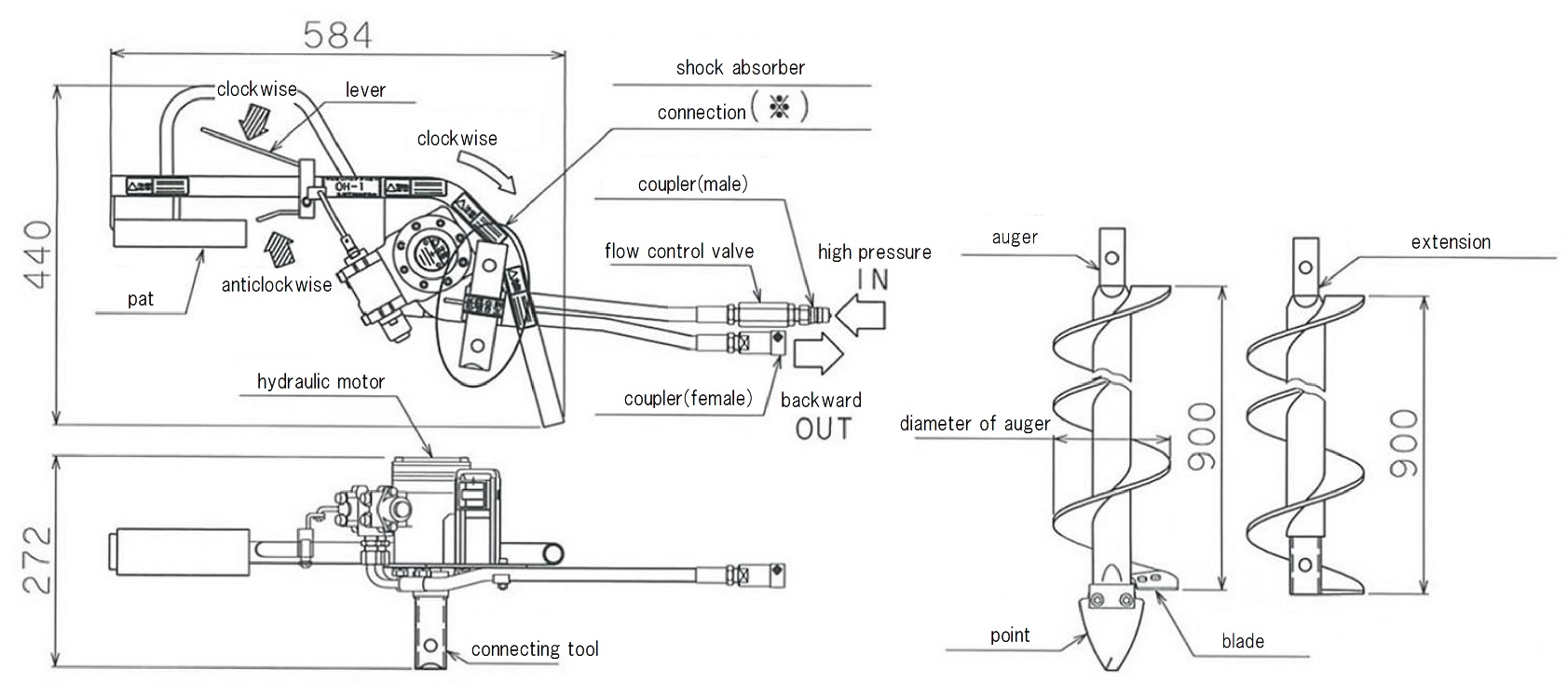

■ Specification
| model | OH-1 |
| external dimensions(mm) | L440×W584×T272 |
| weight(kg) | 14 |
| operative pressure(MPa) | 9.8～13.7 |
| maximum pressure(MPa) | 13.7 |
| allowable back pressure(Mpa) | 6.9 |
| oil flow(L/min) | 9.5～25 |
| maximum flow rate(ℓ/min) | 25 |
| drilling torque(N・ｍ) | 88 |
| maximum rotational speed (rpm) | 300 |
| turning direction | clockwise |
| connecting socket | 3/8inch coupler |
| effective extension hose | 3/8inch×10ｍ 1/2inch×20ｍ |
| hydraulic oil | ISO VG32(standard) or ISO VG46 as a substitute for hydraulic oil |
| oil control valve | working above 25ℓ/min oil and stopping hydraulic motors |

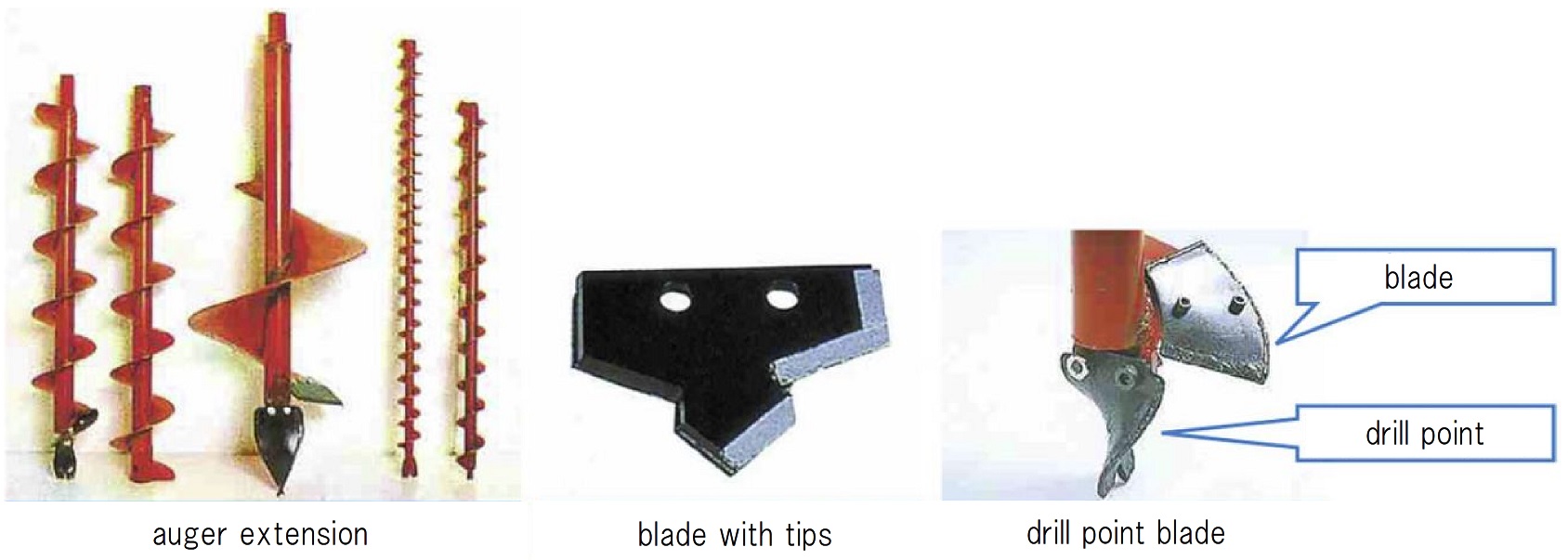

■ Auger List
| diameter of auger | joint way | length of chipping(ｍ) ※ | remarks |
| Φ50×900L | snap-on | 4～5 | adapter is necessary |
| Φ75×900L | |||
| Φ100×900L | 3～4 | ― | |
| Φ150×900L | |||
| Φ200×900L | |||
| Φ250×900L | 2～3 | ||
| Φ300×900L | |||
| Φ350×900L | 1 |
※ Standard length of auger is 900mm. Possible to get longer with extensions.
※ Dater from Kanto loam layer,関東ローム層 (N-value3～15)

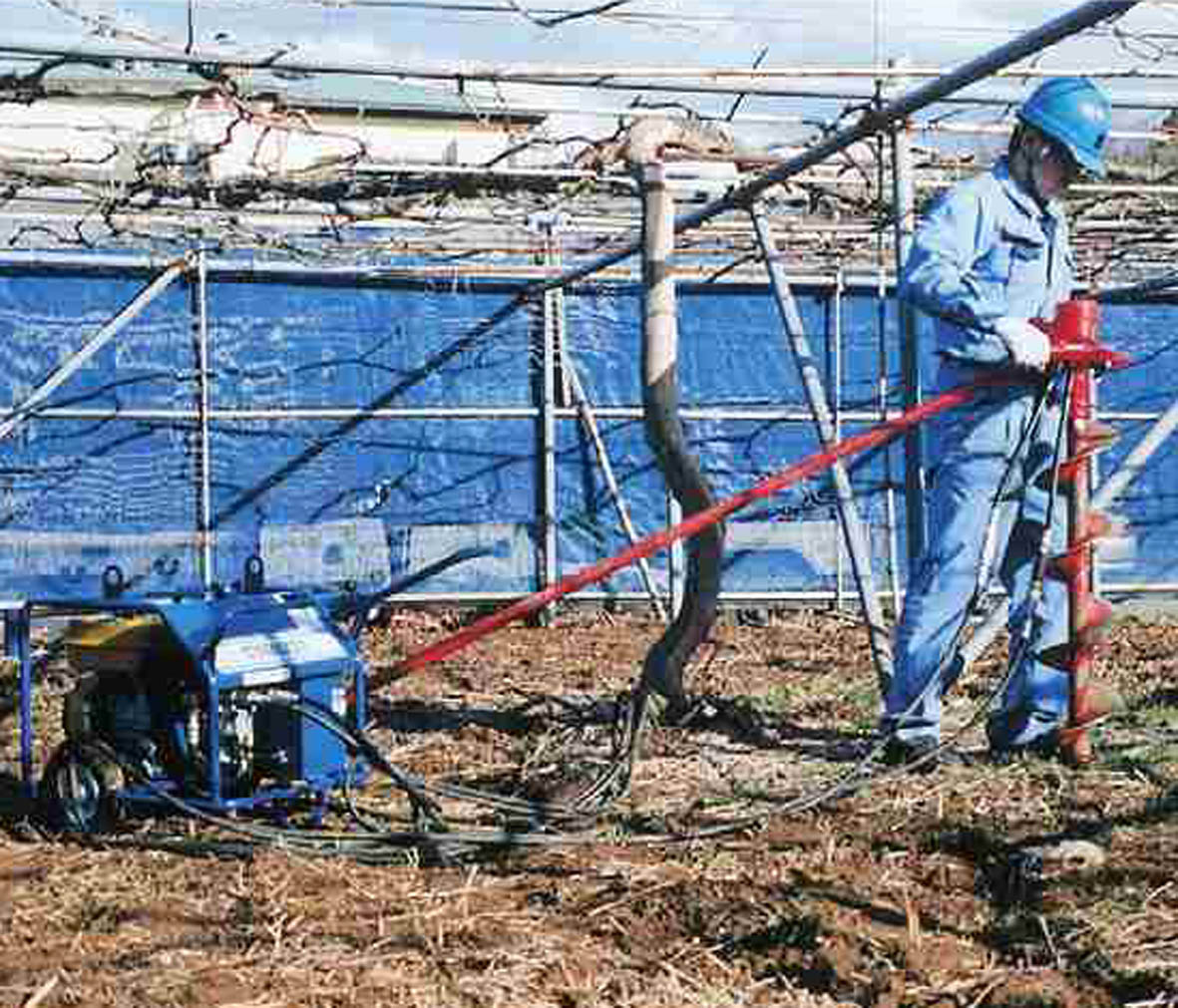

HOW TO USE OH-01
1. To absorb shocks from spinning, it is advisory to prepare an optional hock absorber for supporting operating.
2. Connect earth drill and power source with extension hoses.
3. Attach auger and extensions to the earth drill.
For snap-in type attachment, make sure all the joints are locked firmly.
4. Connect a shock absorber with power pack.
5. Start the power source.
6. Hold the handles on earth drill firmly.
Stick the front of the auger in to determine the drilling position.
Grip the control lever on the longer side of the handles, auger will start spinning in the normal direction.
Slide the earth drill toward the body.
< WARNING >
DO NOT grip the control lever if auger has not been stuck in the ground.
7. Attach extensions to the auger one at each time while drilling.
The number of extensions to be attached depends on the length which you intend to drill.
When extensions or auger stuck because of the obstacles (rocks and etc), pull out the augers or make the auger spins in inverting direction to drag out the obstacles.
When the obstacles are not possible to be dragged out, change the drilling positions or direction or remove the obstacles before start drilling again.
8. When auger reaches to the depth you need, relief the control lever and stop drilling.
Pull out the auger and extensions, detach the extensions one at each time.
9. Stop the power source after drilling. Detach the extension hoses.
Connect couplers(male and female)which on the earth drill together.
10. Clean dirt which stays on the earth drill, auger and extensions.
Air dry and rust-proof spay before storing.
