Handheld Breaker BH112 Maruzenkogyo Item No. MAR-032E
Hydraulic Handheld Breaker for chipping
･Highest power in this class!
･Light enough to do a great job.
Suitable for work in narrow space.
･Suitable for work in cold weather.
Hydraulic won’t freeze up!
Please conntact us with information below if you want to ask more...
・your information(name, address, telephone number)
・quantity
・delivery address
- 販売単位：
- Price :
- Please contact us

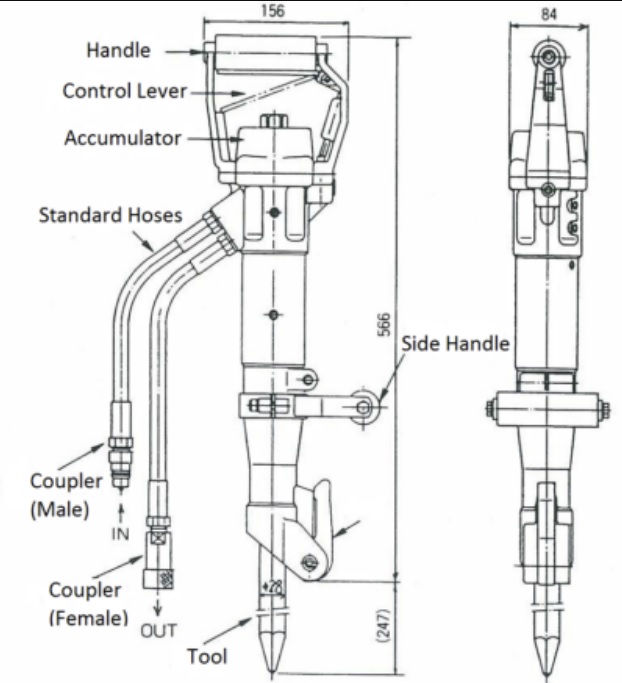

| MODEL | BH112 |
| dimensions(mm) | 582×166 |
| weight(kg) | 11 (without tool) |
| working pressure(MPa) | 8.8～12.7 |
| maximum pressure(MPa) | 20.6 |
| oil flow(ℓ/min) | Blow Per Minute (1)10～12L/min...1300bpm (2)12～15L/min...1500bpm (3)15～20L/min...1700bpm ※standard (4)20～25L/min...2200bpm |
| shank size | HEX 7/8"×3-1/4" (22×83mm) |
| coupling | 3/8inch coupler |
| optional | Side Handle |
| extension hose(m) | 1/2inch ×10 |
HOW TO USE

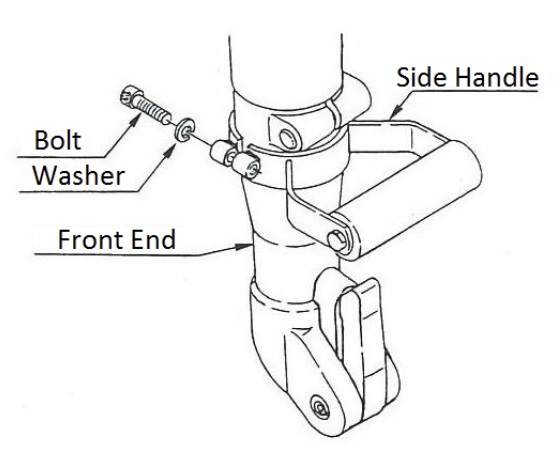

INSTALLATION OF SIDE HANDLE
① Place side handle on the flat part of front end of the breaker.
② Set washers with bolts. Screw the bolts with torque 3.5kgf・m (34.3N・m)
③ Make sure if side handle has been installed firmly.
