Hirado Metal Industry Hydraulic Stone Splitter with Drill-Pack Item No. HRD-006
Packers & Drill Attachment
Hirado's Rock Spliter can split rocks and concrete in various construction projects such as bridge demolition, residential land development, sewer systems, and underwater operations. It operates by inserting a 'wedge' hydraulically, ensuring low noise, low vibration, and minimal dust. Moreover, it is safe as it does not require explosives or static crushing agents.

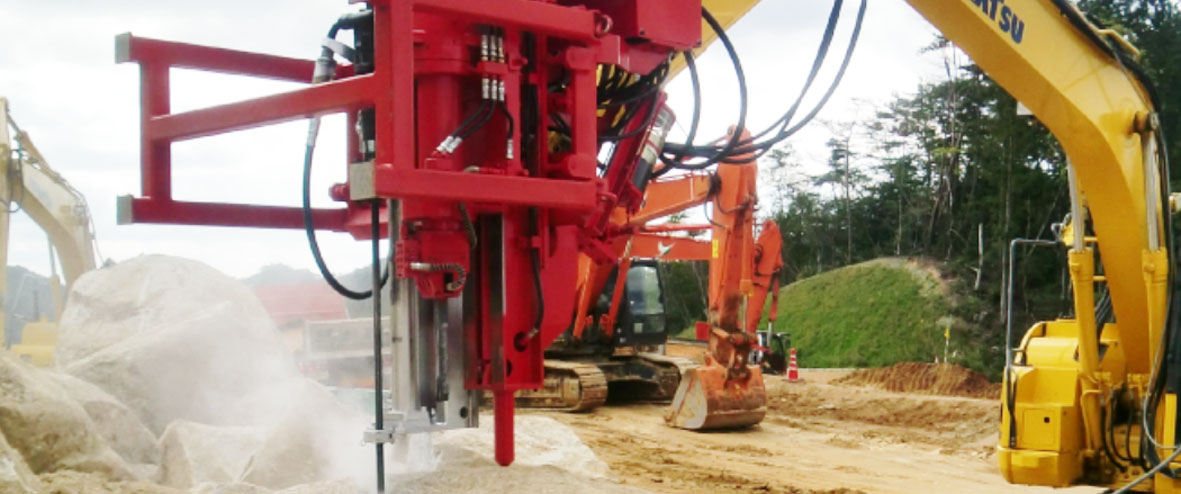

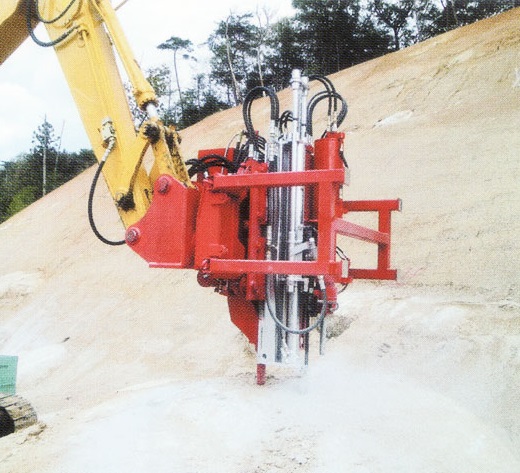

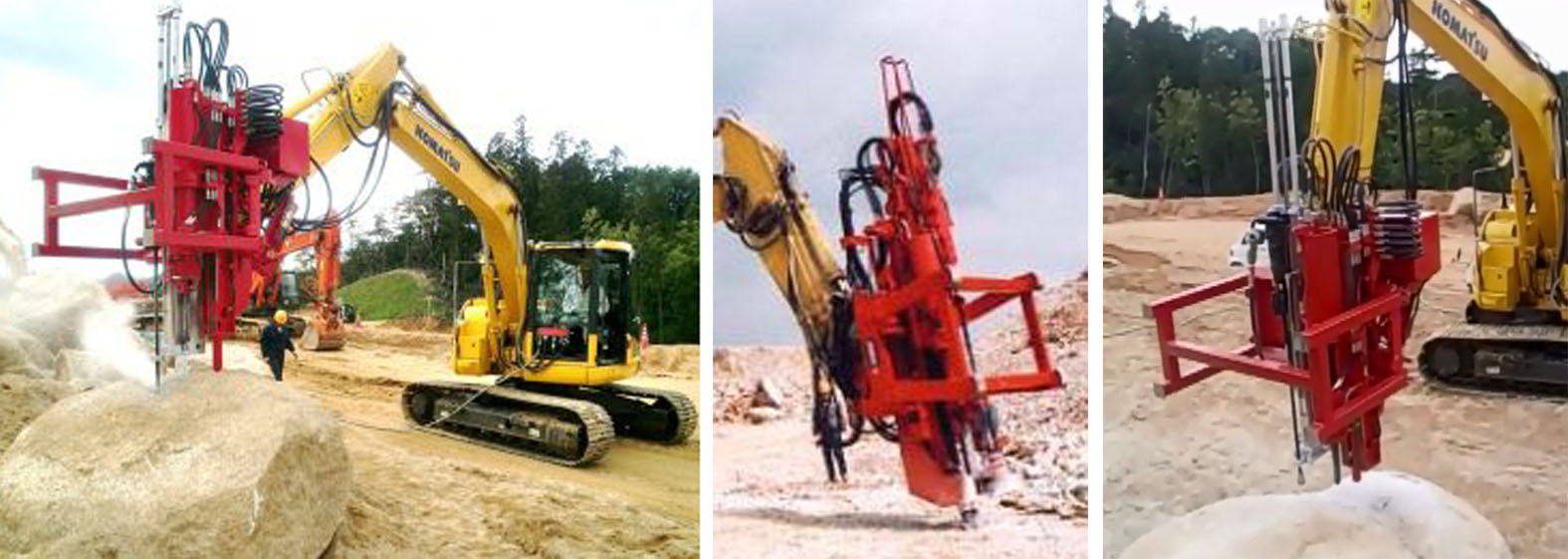

The drill-pack attachment combines a drilling machine for perforation and a rock splitter for breaking rocks, mounted on a single carriage. This system machine enables safe and highly efficient semi-automatic operations for hazardous rock crushing tasks. It can be installed using only the hydraulic breaker piping of a backhoe, allowing for all operations from drilling to crushing to be controlled from within the cabin.
Making the work extremely safe, as there is no need to use any explosives or static crushing agents. Also saves evacuation time, and allows for precise project planning and execution. We invite you to try it out!
*Please provide details such as desired model and quantity for both the main unit and consumables, base machine model equipped with breaker piping, usage scenarios (such as bridge decks or bedrock), delivery destination, and desired delivery date when making inquiries.
- 販売単位：
- Price :
- Please contact us
■Features
● Equipped with a drilling machine for perforation and a rock splitter for rock breaking on a single carriage, allowing for semi-automatic, safe, and highly efficient operations in heavy and hazardous rock crushing tasks.
● Connects to the hydraulic breaker piping of a excavator, enabling all operations from drilling to crushing to be controlled from within the cabin.
● Can be used in conjunction with a hydraulic breaker, significantly reducing project duration.
● Unlike static crushing agents, there is no waiting time for crushing, eliminating concerns about accidents during setup.
● There is no scattering of debris like in blasting operations, saving evacuation time and allowing for accurate project management, enabling systematic construction progress.
| Model | Mounted pneumatic drill・ Drifter | Wedge | Weight (kg) | Bit diameter (mm) | Perforation length (mm) | Splitting force (MN) | Required Hydraulic Source (MPA) | |||
| Rock splitter Model | Diameter (mm) | Rock splitting width (mm) | Rock splitting width (mm) | |||||||
| Compact Drill-Pack PD-1 | TY-24 | E26W46 A300 | 46 | 300 | 13 | 800 | 48～50 | 600 | 8 | 25 |
| Compact Drill-Pack PD-7 | TH-501 (Hydraulic) | N-50W95 A700 | 95 | 700 | 25 | 3900 | 102 | 1300 | 26 | 25 |

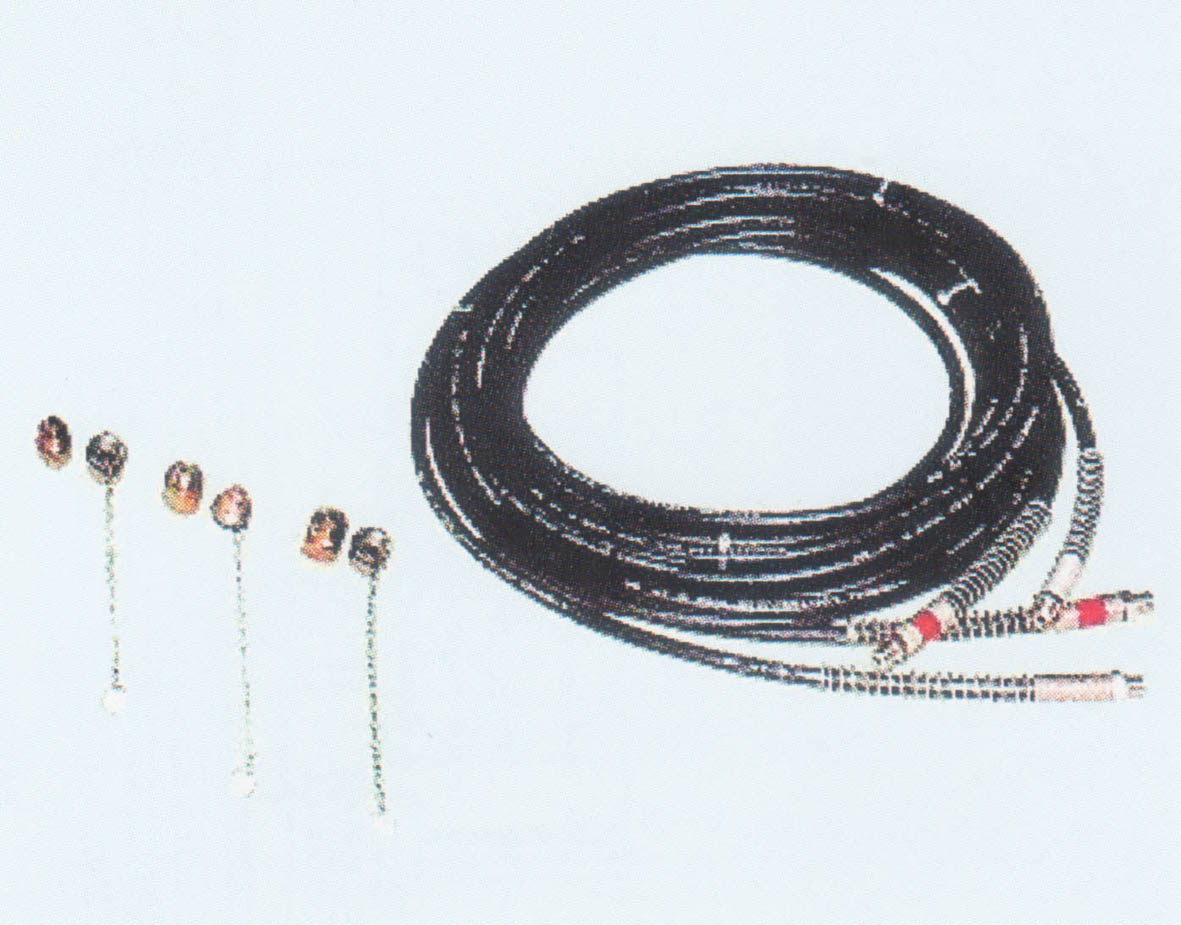

■Hydraulic Hose
●Max. Operating Pressure:1000kg/㎠
●Normal Operating Pressure:850kg/㎠
●Inner Dia. / Outer Dia.:6.3mm / 15.7mm
●Weight:10kg（2 pcs.）
■Cuppler
●Max. Operating Pressure:1000kg/㎠
●Connection:NPTF

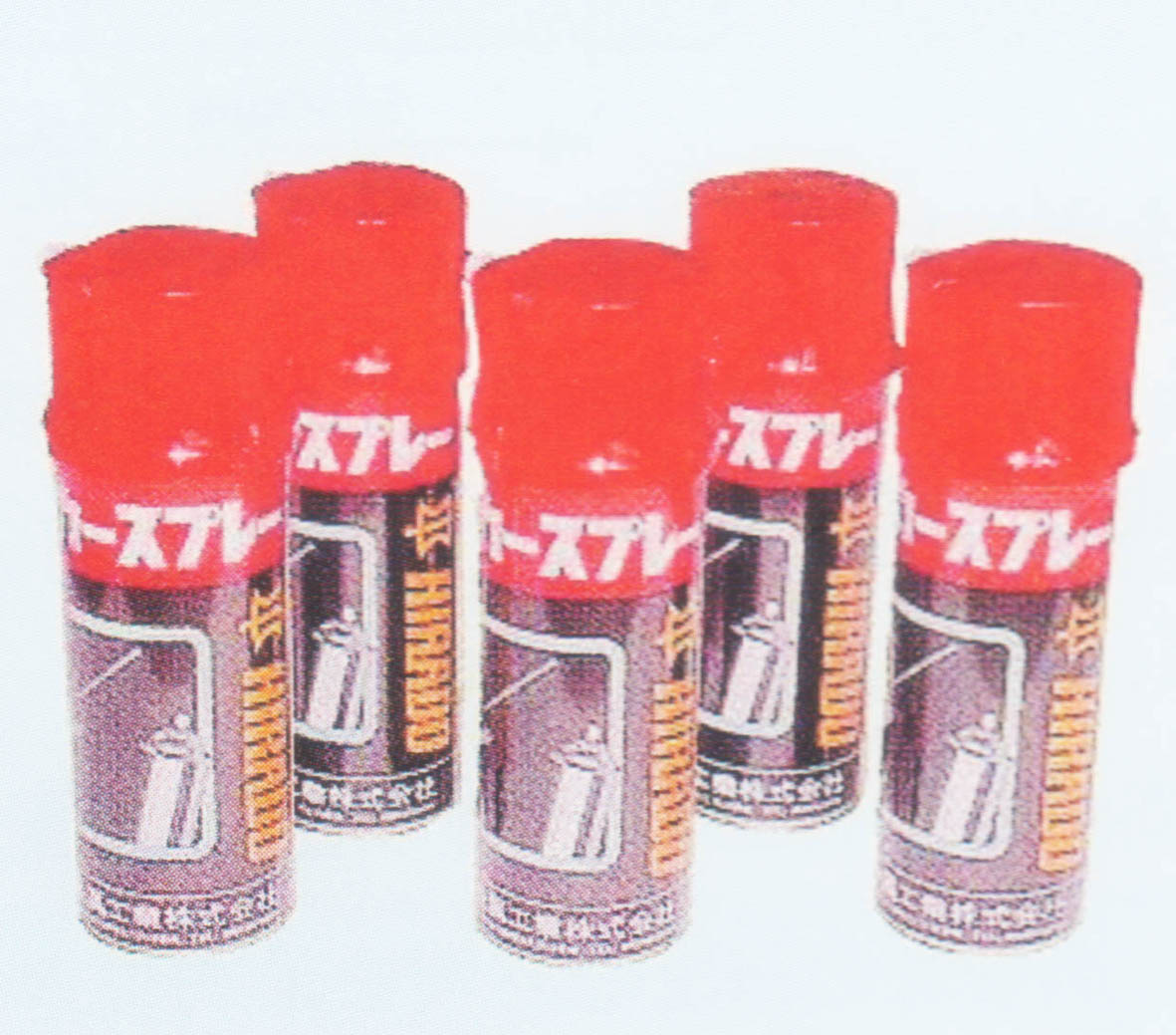

■Spray-Grease
●Molybdenum disulfide lubricant
●Apply to the packer wedge slide section. This is a dedicated extreme pressure lubricant spray grease
developed specifically to enhance the performance of the packer

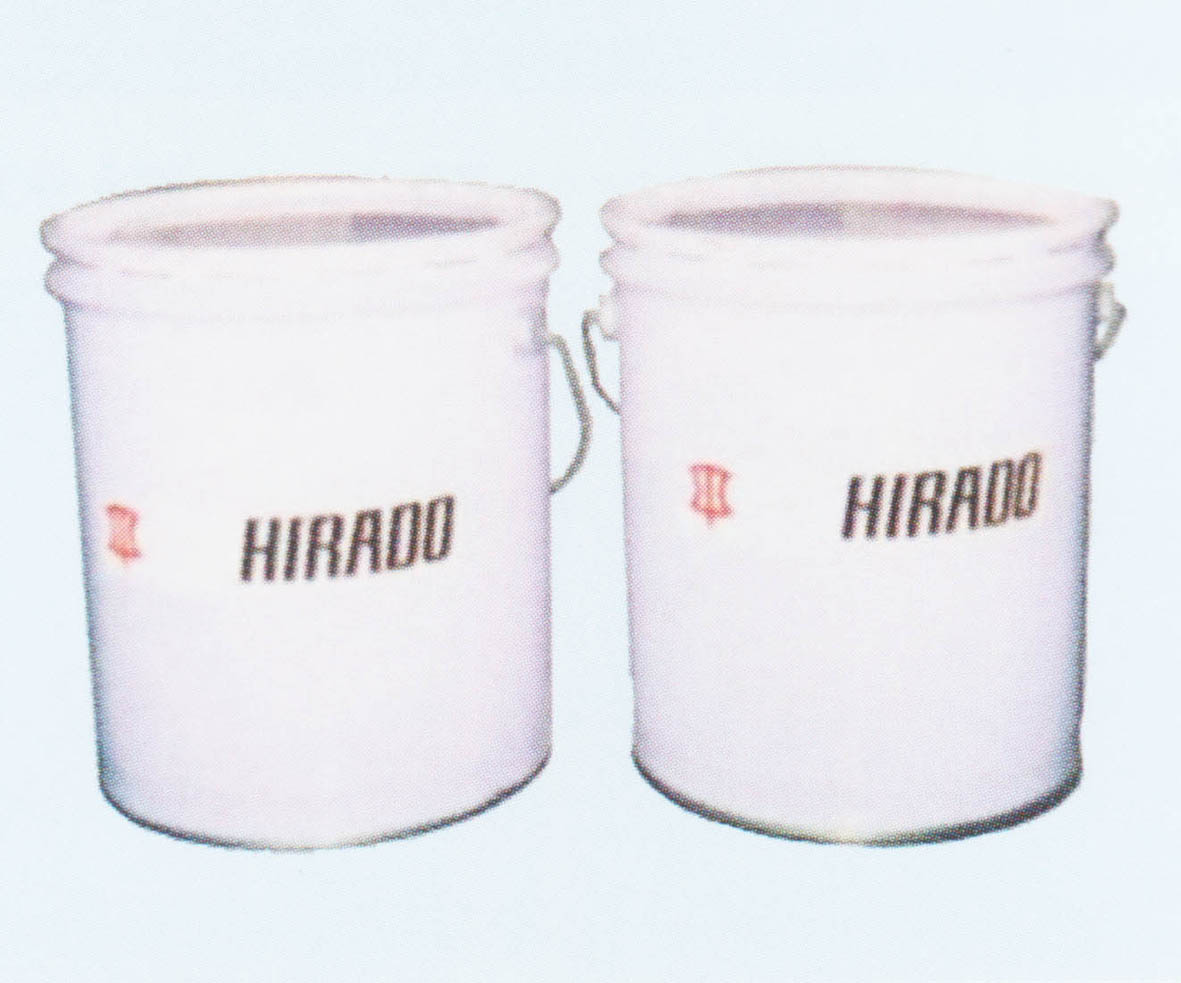

■Grease
●Weight:16kg・3kg

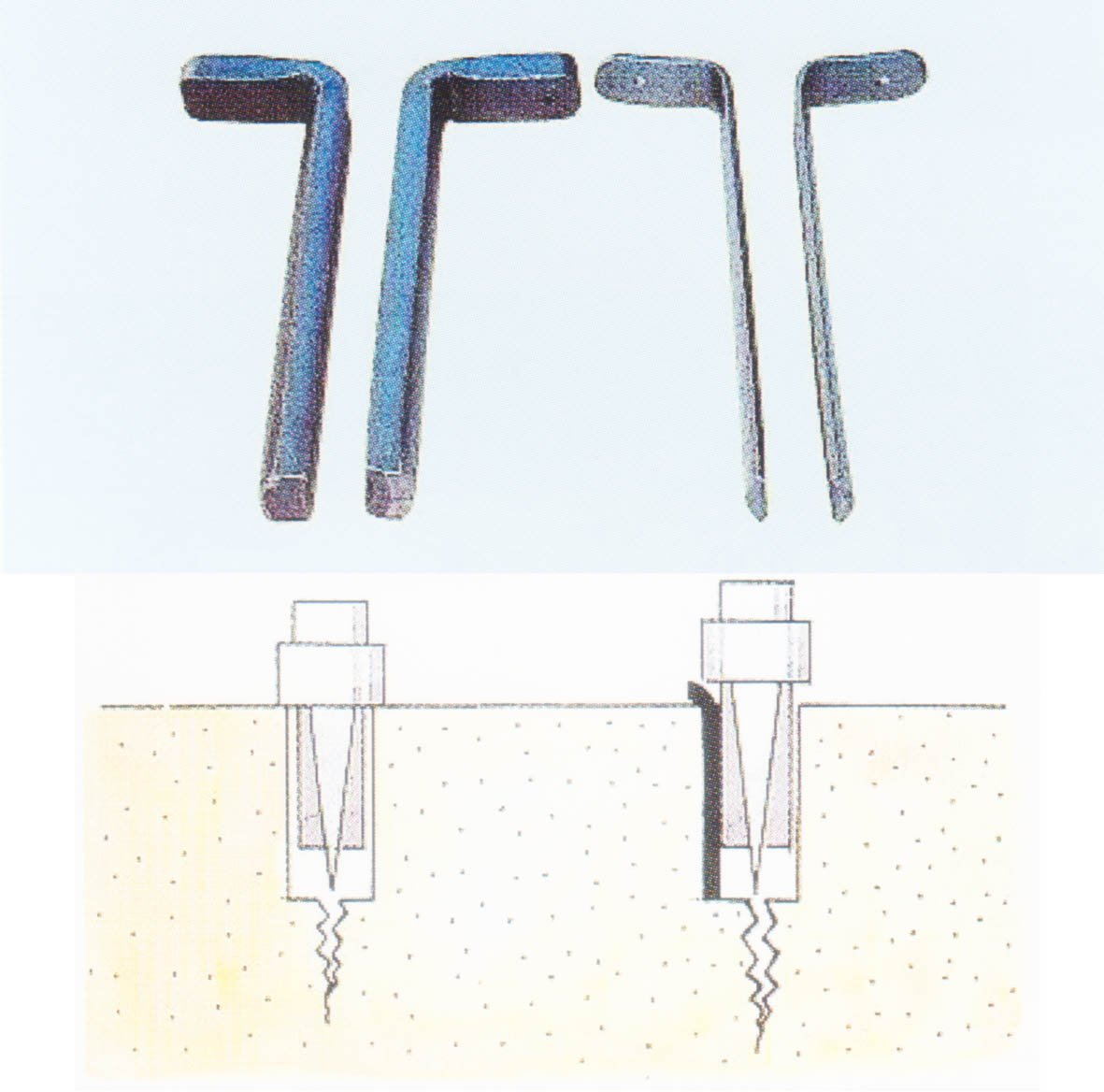

■Feather wedge
●After splitting the rock once with the packer, insert it as shown in the diagram below.
●This fixture widens the split rock area to make the work easier to perform.
