Hirado's TH-5 Route Hammer Item No. HRD-002
Combining powerful drilling force with excellent durability
Significantly improve of work efficiency!!
Compact rock drill designed for drilling holes in rocks and concrete.
The Route Hammer TH-800 was enhanced by increasing its horsepower up to 150%! This robust drilling capability greatly increasing its work efficiency. Alongside the horsepower, several components have been upgraded to improve durability, making it a sturdy and long-lasting economical Route Hammer.
Further the renowned butterfly valve was improved to eliminate clogging during use.

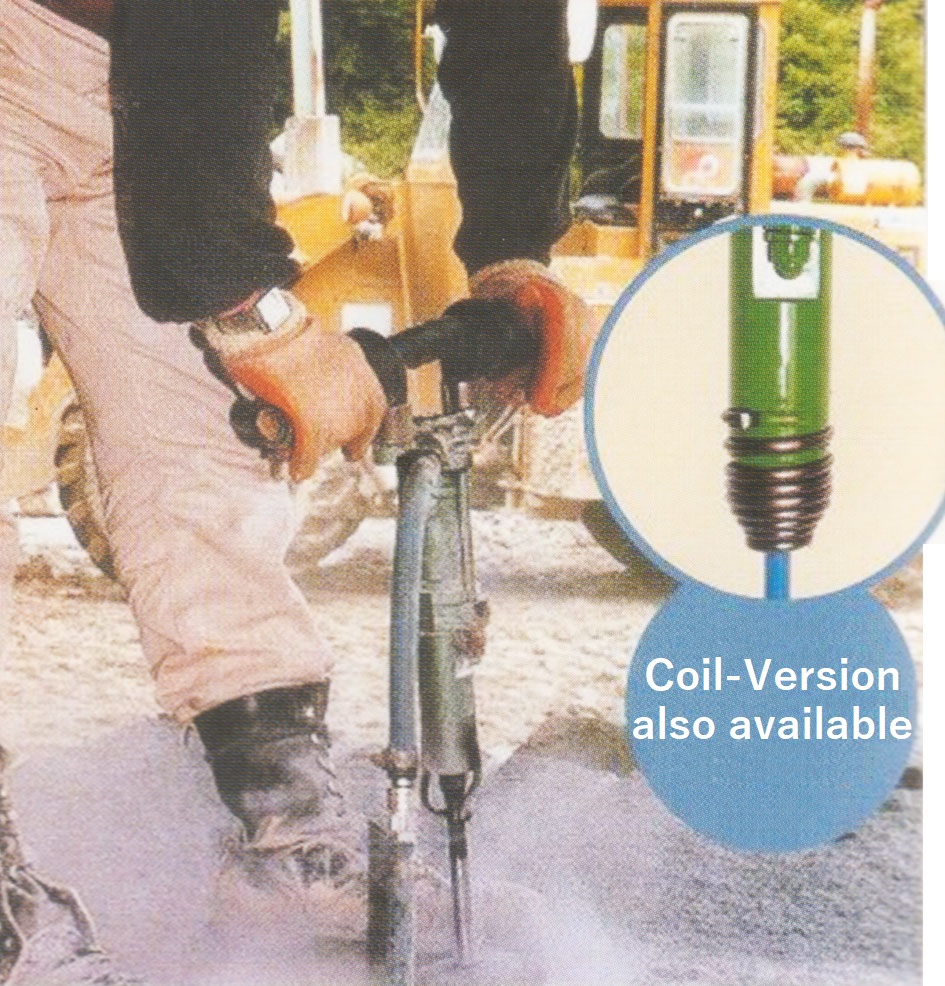

The hammer's rotation direction has been changed from left rotation to right rotation, making it suitable for chemical anchor and anchor bolt work as well.
Despite these enhancements, it weighs approximately 6kg, making it very lightweight and easy to handle.
We are confident that you will be completely satisfied with its performance!!
*When placing an order, please specify the model, quantity, and delivery location for both the main unit and consumables.
- 販売単位：
- Price :
- Please contact us
■Applications

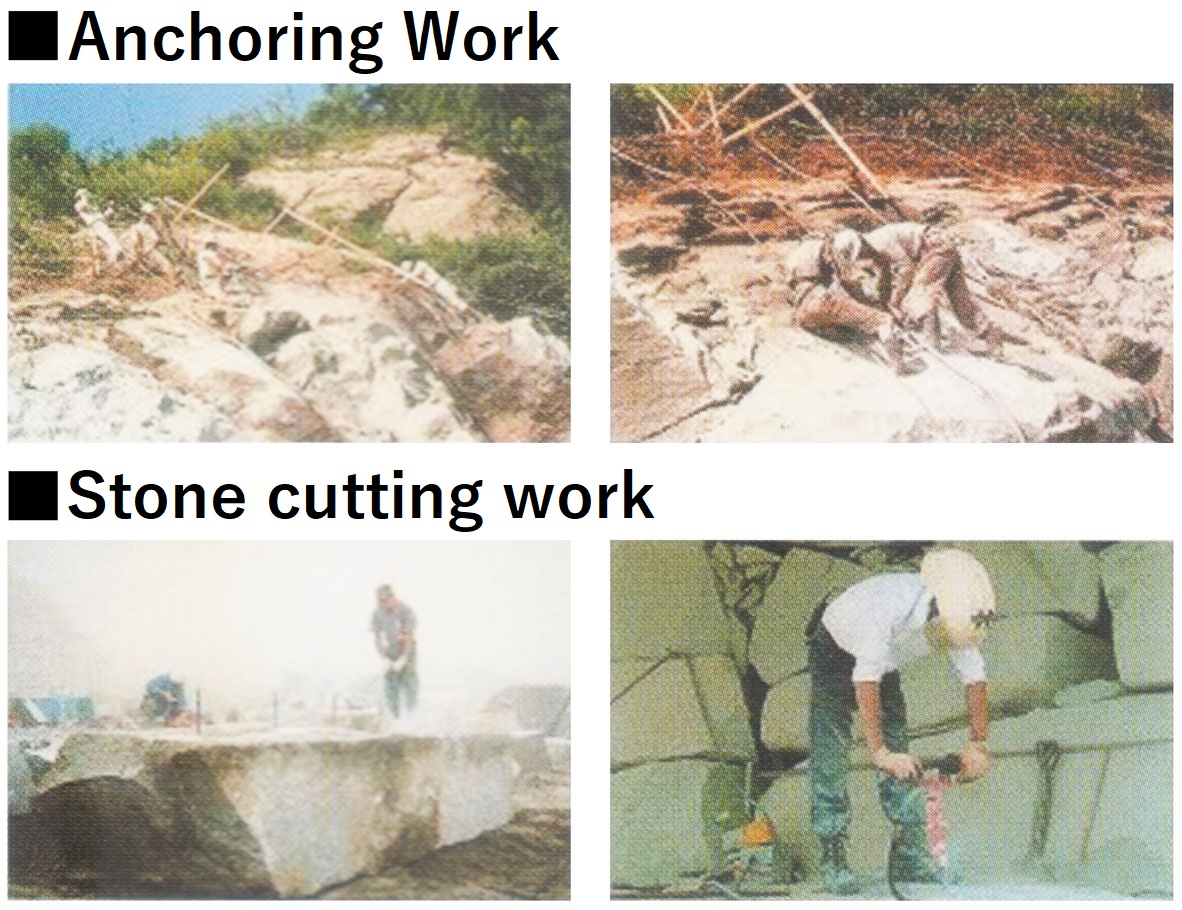

●It excels in the field of civil engineering and stonemasonry industries, where it is used for quarrying stone, anchor installation, slope work, and other tasks.
●It demonstrates unparalleled performance in drilling operations for granite, concrete, boulders, bedrock, mining, tunnels, and tunneling projects.

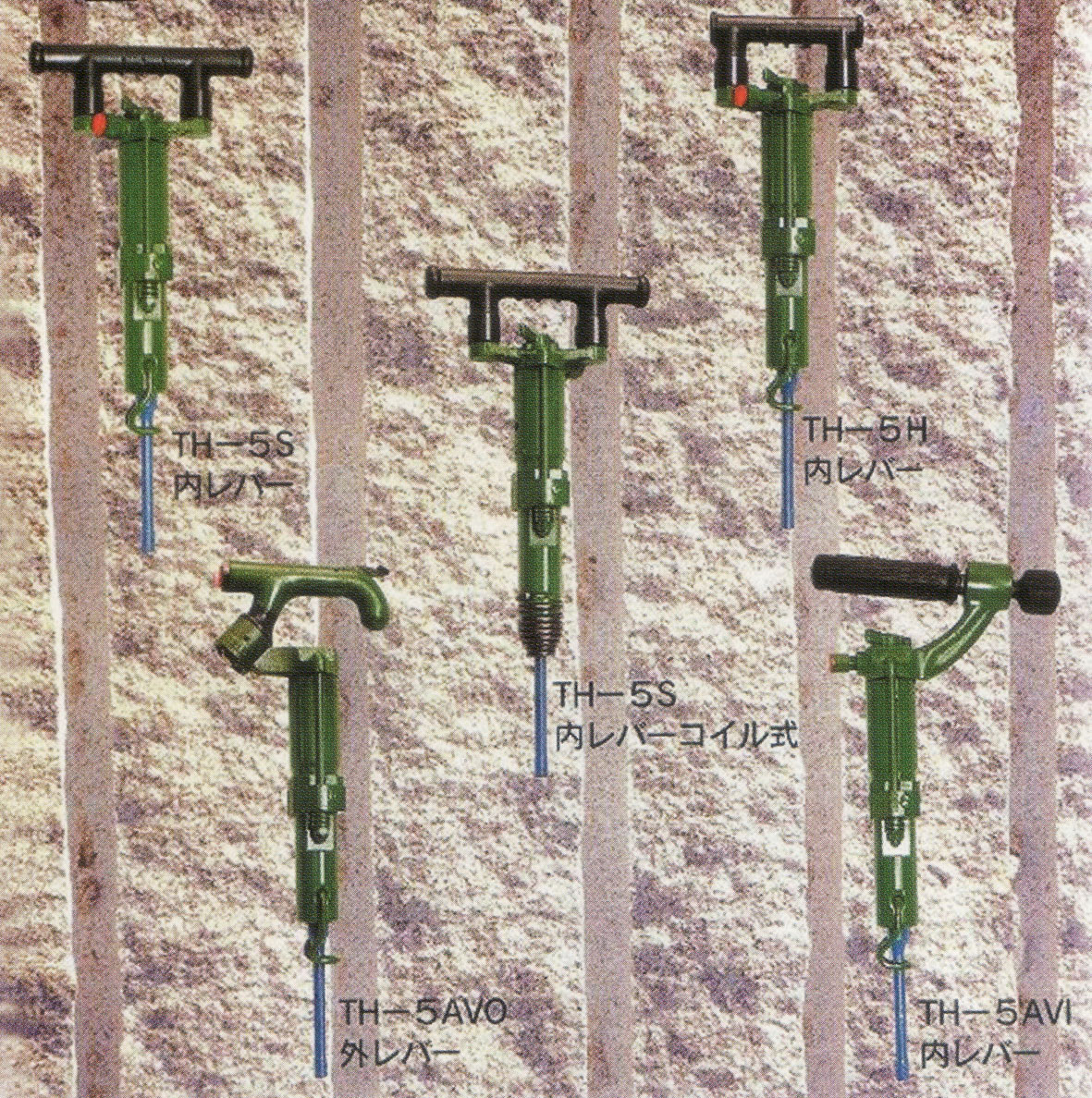

| Model | Length(mm) | Weight(kg) | Air consumption(㎥/mm) | Hose Inner dia. (mm) | Drilling capacity diameter(mm) |
| TH-5S | 424 | 5.8 | 0.85 | 13 | 40 |
| TH-5H | 424 | 5.8 | 0.85 | 13 | 40 |
| TH-5AVO | 437 | 6.0 | 0.85 | 13 | 40 |
| TH-5AVI | 458 | 7.3 | 0.85 | 13 | 40 |
| TH-5SC | 424 | 5.8 | 0.85 | 13 | 40 |
| TH-5SH *Coil Ver. | 424 | 5.8 | 0.85 | 13 | 40 |

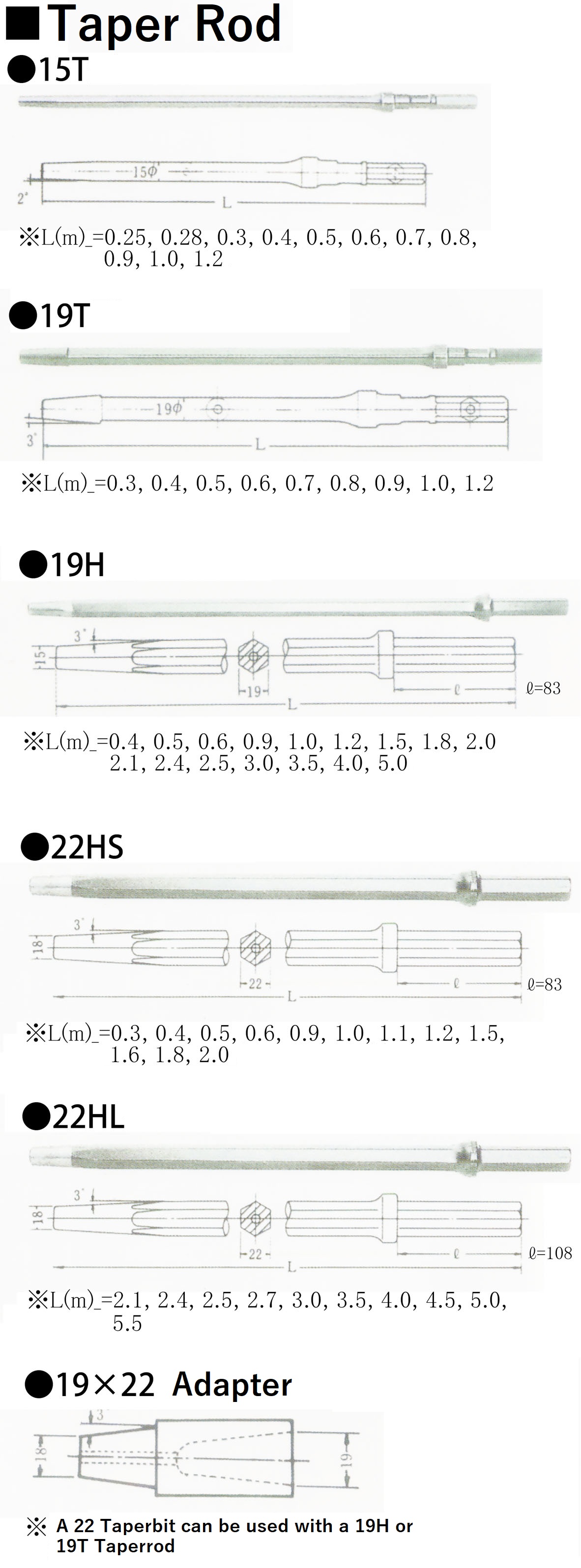

■Taper Shank Adapter
By attaching this adapter, it enables the use of concrete drills.

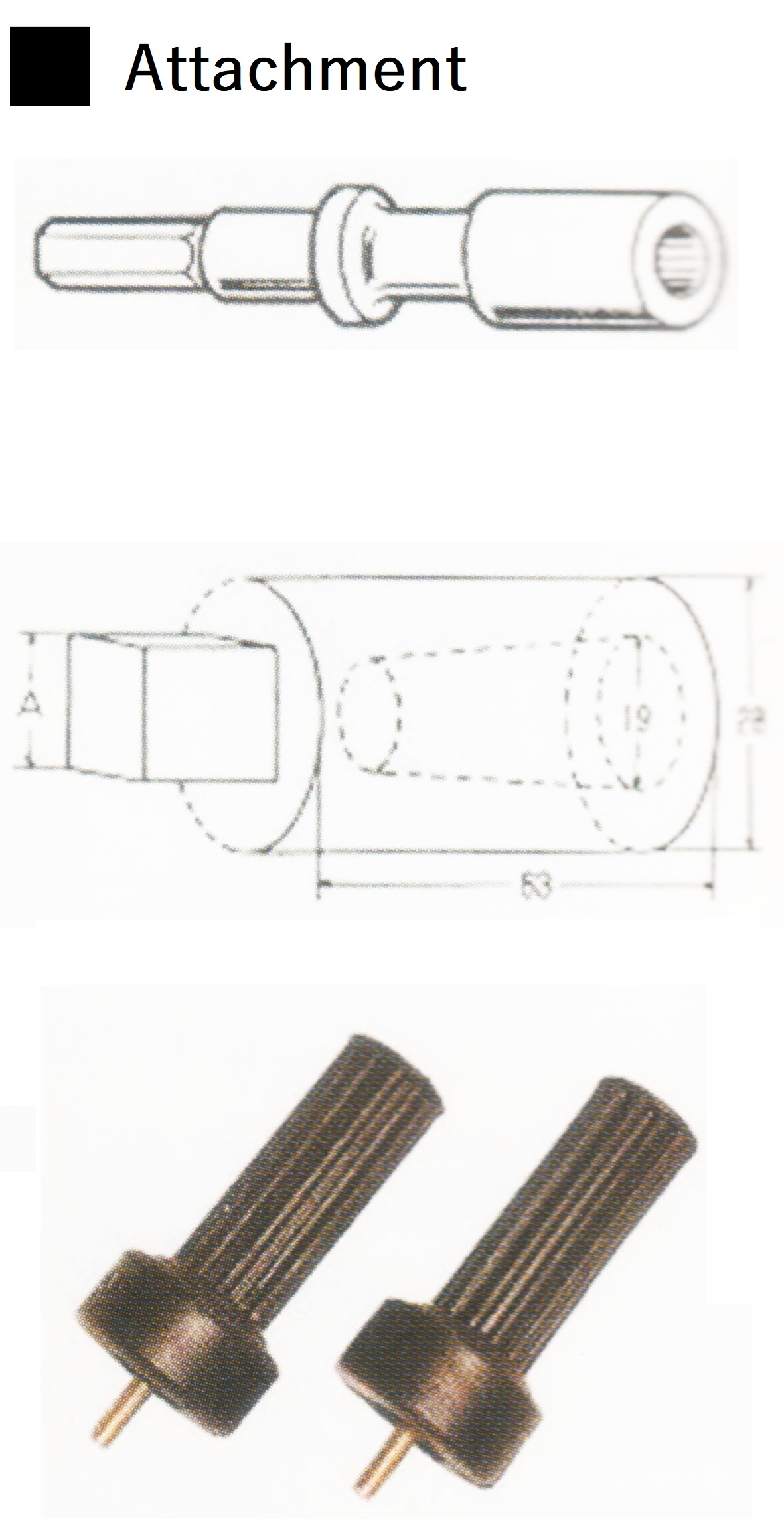

■Chemical Anchor Attachment
By attaching to a 19T rod, you can tighten nuts of various sizes.
A is available in the following sizes: 12.7mm, 19.0mm, and 25.0mm.

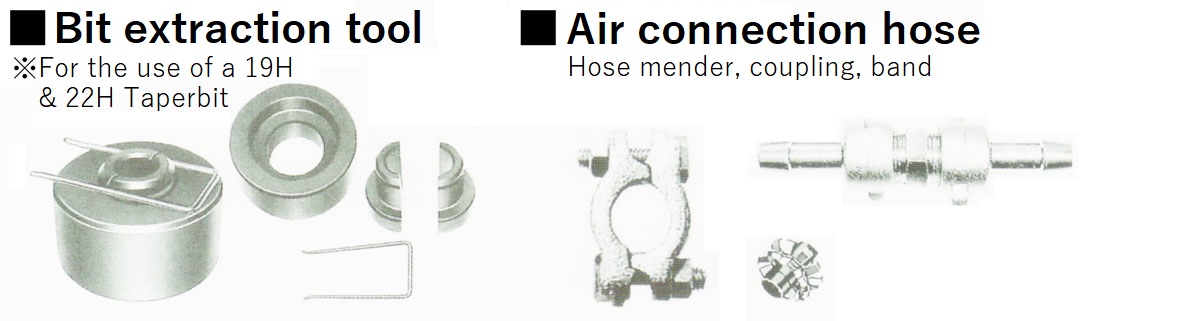

■Anti-vibration Handle
Compatible with TH-5H.

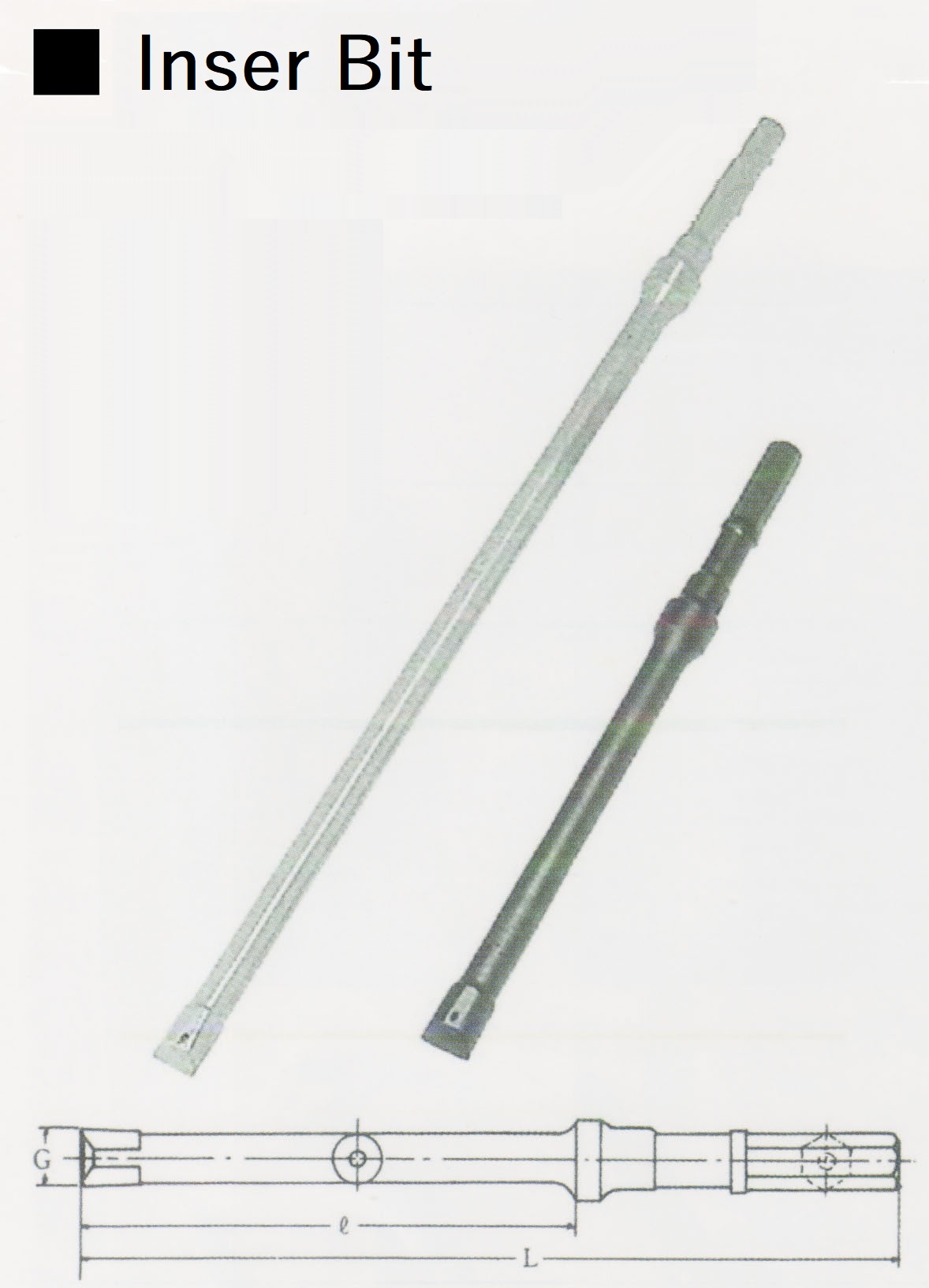

■Features of the Insert Bit
● Rod with integrated Bit
● Best for small-diameter drilling of stone, concrete, and bedrock
● Drill diameter ranges from 12 to 22mm and drilling lengths of 100 to 570mm, offering a wide range of options tailored to your needs
| Insert Bit (mm) | |||||||||||
| Model | G | L | ℓ | Model | G | L | ℓ | Model | G | L | ℓ |
| 12-350 | 12 | 350 | 250 | 16-500 | 16 | 500 | 400 | 20-280 | 20 | 280 | 180 |
| 13-250 | 13 | 250 | 150 | 16-600 | 16 | 600 | 500 | 20-400 | 20 | 400 | 300 |
| 13-350 | 13 | 350 | 250 | 16-700 | 16 | 700 | 600 | 20-500 | 20 | 500 | 400 |
| 14-230 | 14 | 230 | 130 | 17.5-300 | 17.5 | 300 | 200 | 20-600 | 20 | 600 | 500 |
| 14-250 | 14 | 250 | 150 | 18-280 | 18 | 280 | 180 | 20-700 | 20 | 700 | 600 |
| 14-280 | 14 | 280 | 180 | 18-400 | 18 | 400 | 300 | 21.5-300 | 21.5 | 300 | 200 |
| 14-400 | 14 | 400 | 300 | 18-500 | 18 | 500 | 400 | 22-280 | 22 | 280 | 180 |
| 14.5-250 | 14.5 | 250 | 150 | 18-600 | 18 | 600 | 500 | 22-400 | 22 | 400 | 300 |
| 14.5-300 | 14.5 | 300 | 200 | 18-700 | 18 | 700 | 600 | 22-500 | 22 | 500 | 400 |
| 14.5-350 | 14.5 | 350 | 250 | 19-300 | 19 | 300 | 200 | 22-600 | 22 | 600 | 500 |
| 15-300 | 15 | 300 | 200 | 19-400 | 19 | 400 | 300 | 22-700 | 22 | 700 | 600 |
| 16-250 | 16 | 250 | 150 | 19-500 | 19 | 500 | 400 | ||||
| 16-280 | 16 | 280 | 180 | 19-600 | 19 | 600 | 500 | ||||
| 16-400 | 16 | 400 | 300 | 19-700 | 19 | 700 | 600 | ||||
