FARO Focus Laser Scanner S350 / S150 / S70 / FocusM70 Item No. FAR-002
Laser Scanners for Short, Medium and Long Range Applications
FARO Focus Laser Scanners are specifically designed for both indoor and outdoor measurements in industries such as Architecture,Engineering, Construction, Public Safety and Forensics or Product Design. All devices capture real world information used in the digital world to analyze, collaborate and execute decisions to improve and maintain the overall project and product quality.

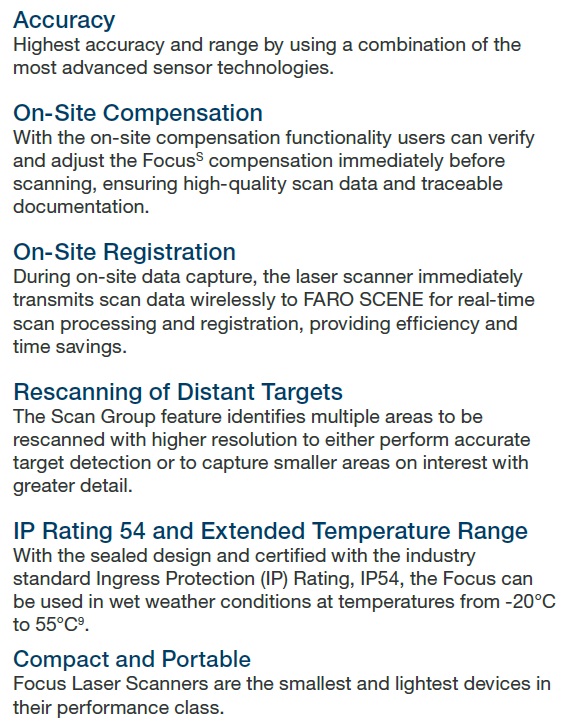

In addition to increased distance, angular accuracy, and range, the Focus scanners’ on-site compensation function ensures high-quality measurements, while external accessory bays and HDR functionality make the scanner extremely flexible.
Please contact us for further information.
日本語版はこちらにクリックしてください。
- 販売単位：
- Price :
- Please contact us
| Focus Series S350｜S150｜S70 | Focus M 70 | |||||||
| Ranging Unit | ||||||||
| Unamiguity interval: | 614m for 122 to 488kpts/s | 614m for 122 to 488kpts/s | ||||||
| Range1: | ||||||||
| 90％ reflectivity (white) | 0.6-350m｜06.150m｜0.6-70m | 0.6-70m | ||||||
| 10％ reflectivity (dark-grey) | 0.6-150m｜06.150m｜0.6-70m | 0.6-70m | ||||||
| 2％ reflectivity (black) | 0.6-50m｜06.50m｜0.6-50m | 0.6-50m | ||||||
| Ranging noise | @10m | @10m noise reduced | @25m | @25m noise reduced | @10m | @10m noise reduced | @25m | @25m noise reduced |
| in mm | ||||||||
| ＠90％ reflectivity (white) | 0.30 | 0.15 | 0.30 | 0.15 | 0.70 | 0.40 | 0.70 | 0.40 |
| ＠10％ eflectivity (dark-grey) | 0.40 | 0.20 | 0.50 | 0.25 | 0.80 | 0.40 | 0.80 | 0.40 |
| ＠2％ reflectivity (black)) | 1.30 | 0.65 | 2.00 | 1.00 | 1.50 | 0.80 | 2.10 | 1.10 |
| Measurement speed (pts/sec) | 122,000 / 244,000 / 488,000 / 976,000 | 122,000 / 244,000 / 488,000 | ||||||
| Range accuracy | ±1mm | ±3mm | ||||||
| Angular accuracy | 19 arcsec for vertical/horizontal angles | not specified | ||||||
| 3D position accuracy | 10m：2mm / 25m：3.5mm | not specified | ||||||
| Color Unit | ||||||||
| Resolution: | Up to 165 Megapixel color | |||||||
| High Dynamic Range (HDR): | Exposure Bracketing 2x, 3x, 5x | |||||||
| Parallax: | Minimized due to co-axial design | |||||||
| Deflection Unit | ||||||||
| Field of view: | 300°vertical/ 360°horizontal | |||||||
| Steop size: | 0.009°(40,960 3D-pixel on 360°) vertical/0.009° (40,960 3D-pixel on 360°) horizontal | |||||||
| Max. scan speed: | 97Hz (vertical) | |||||||
| Laser (Optical Transmitter) | ||||||||
| Laser Class: | Laser class 1 | |||||||
| Wavelength: | 1550nm | |||||||
| Beam divergence: | 0.3mrad(1/e) | |||||||
| Beam diameter at exit: | 2.12mm(1/e) | |||||||
| Data handling and control | ||||||||
| Data storage: | SD,SDHC,SDXC,256GB card | |||||||
| Scanner control: | Via touchscreen display and WLAN connection. Access by mobile deviceswith HTML5 | |||||||
| Interface Connection | ||||||||
| WLAM: | 802.11n(150Mbit/s), as access point or client in existing networks | |||||||
| Additional Features | ||||||||
| Dual axis compensator: | Performs a leveling of each scan with an accuracy of 19 arcsec valid within ±2 | |||||||
| Height sensor: | Via an electronic barometer the height relative to a fixed point can be added to a scan. | |||||||
| Compass: | Electronic compass gives the scan an orientation. | |||||||
| GNSS: | Integrated GPS & GLONASS | |||||||
| On-site compensation: | Creates current quality report and improves compensation automatically. | - | ||||||
| Accessory bay: | The accessory bay connects versatile accessories to the scanner. | - | ||||||
| Inverse mounting: | Yes | Yes | ||||||
| Real-time, on-site registration in SCENE: | Connects to SCENE, real-time scan processing and registration, overview map | - | ||||||
| Electronic Automation Interface | Available asoption, only at point of sale | - | ||||||
| Digital Hash Function | Scans are cryptographically hashed and signed by the scanner | - | ||||||
| Rescanning of Distant Targets | Scans are cryptographically hashed and signed by the scanner | - | ||||||
| Retake Photos | Select individual photographs with unwanted objects and retake them | - | ||||||
| General Specifications | ||||||||
| Power supply: | 19V (external supply), 14.4V (internal battery) | |||||||
| Power consumption: | 15W idle, 25W scanning, 80W charging | |||||||
| Battery service life: | 4.5 hours | |||||||
| Temperature: | Operating: 5-40°C, extended operating: -20-55°C, storage: -10-60°C | |||||||
| Ingress protection (IP) rating class: | IP54 | |||||||
| Humidity Resistence: | Non-condensing | |||||||
| Weight: | 4.2kg (incl. battery) | |||||||
| Size/Dimensions: | 230x 183x 103mm | |||||||
| Maintenance/calibration | Annual | |||||||
