Handheld Cutter CH140 Maruzenkogyo Item No. MAR-025E
Handheld Cutter CH140
①Light Weight
CH140 is only 7 weight without blade.
Perfect for cutting wall or vertical objects.
②High Torque
CH140 has Maruzen original hydraulic motor. it makes the torque more powerful and work efficiency.
③Water proof design.
CH140 can be used underwater!
Please conntact us with information below if you want to ask more...
・your information(name, address, telephone number)
・quantity
・delivery address
- 販売単位：
- Price :
- Please contact us
| MODEL | CH140 |
| dimensions(mm) | 655×200×377 |
| weight(kg) | 7 (without blade) |
| allowable back pressure(MPa) | 4 |
| maximum pressure(MPa) | 17.2 |
| rated oil flow(ℓ/min) | 20～30 |
| max oil flow(ℓ/min) | 30 |
| torque(N・m) | 13N・m(20 L/min) / 21N・m(30 L/min) |
| standard blade | dry type silent diamond blade 14"(O.D. φ355mm Shaft 30.5mm) |
| cutting depth(mm) | 138 |
| coupling | 3/8inch couplers |
| hydraulic oil | ISO VG32(Standard), ISO VG46 equivalant or equivalent |
| extension hose(m) | 3/8" couplers×10m |
| R.P.M | 3000 (at 30L/min) |

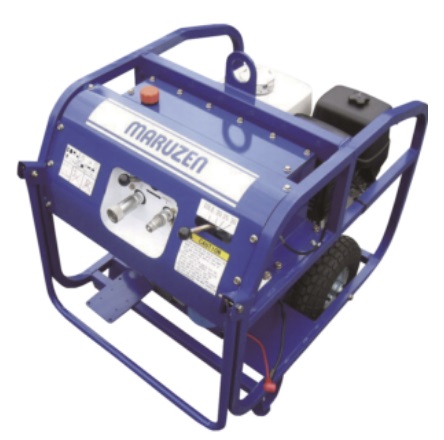

USE UH130 FOR POWER SOURCE
･Adjustable oil flow in three modes.
Choose either 20ℓ/min, 25ℓ/min, or 30ℓ/min.
･Adjust the power of CH140 by changing oil flow.
No. 2608
