Engine Earth Drill AG21 Maruzenkogyo Item No. MAR-031E
ENGINE EARTH DRILL/ AG21
･Excellent portable earth drill with air-cooled 4-cycle engine.
Fuel : non-lead gasoline
･Horizontal digging is possible with a diaphragm type carburetor!
･Equipped with reduction gears!
Lightweight and compact, but high torque.
Please conntact us with information below if you want to ask more...
・your information(name, address, tel number)
・quantity
・delivery address
- 販売単位：
- Price :
- Please contact us
| MODEL | AG21 |

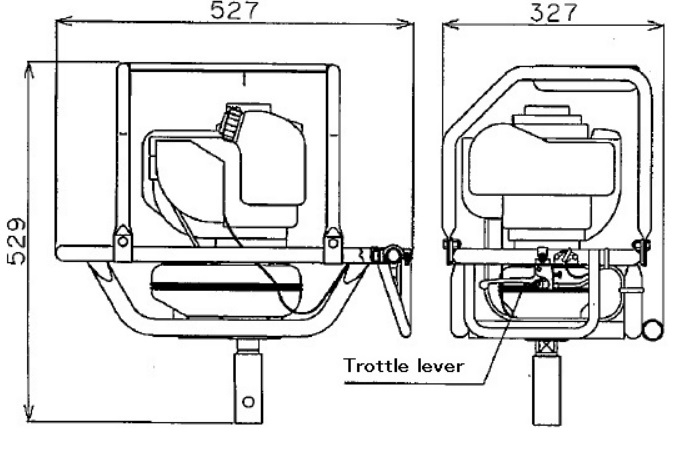

| dimension(mm) | 527×308×529 |
| weight(kg) | 18(Dry Weight) |
| max pressure(Mpa) | 11.7 |
| engine | Honda GX35 Air-Cooled 4 cycle engine |
| max output(rpm) | 1.0kW(1.4PS)/7,000 |
| spark plug | CM5H(made by NGK) |
| fuel | Non-lead gasoline |
| fuel capacity(L) | 0.63 |
| engine oil | HONDA Genuine ULTRA-U General Purpose(10W-30) or API category, SE, SF, SG class or equivalent SAE 10W-30 |
| engine oil capacity(L) | 0.1 |
| available range | 360°(designed with rotary slinger pumping lubrication sysytem) |
| max drilling dia | φ250 |
| drill rotation per minutes(rpm) | 200 |
| drilling performance | able to drill horizontally |
