ADEAM (F type) Item No. MAK-009
ADEAM is a high-strength, low-elongation, low-creep strain geotextile made from aramid fiber (Technora®), made in two types of HG type and F type.

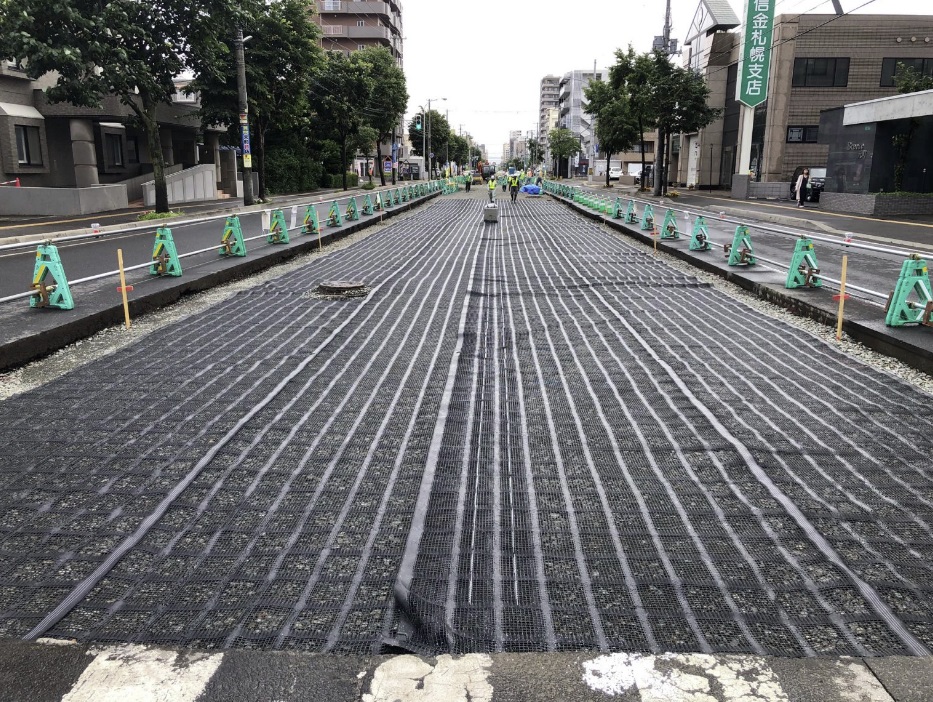

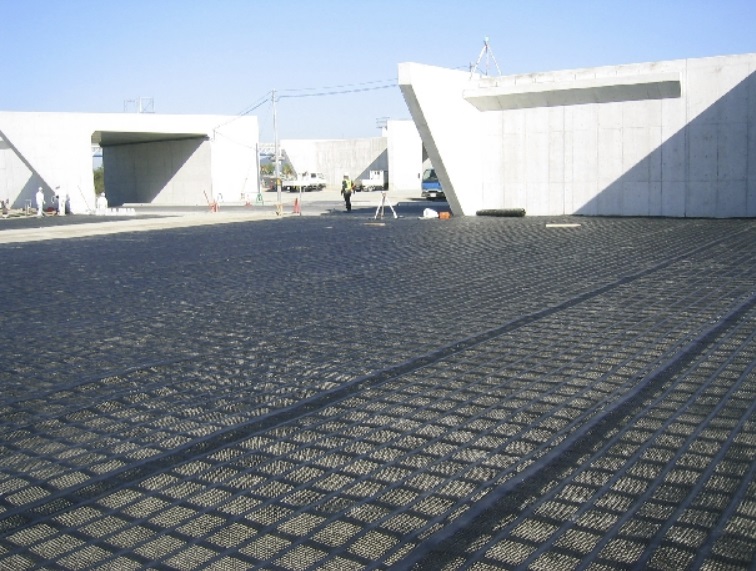

ADEAM F type is a flexible woven fabric base type, with a special resin coating on a grid-style woven fabric made by interweaving polyester fibers and aramid fibers. Suitable for reinforcement of high embankment on gentle slopes, embankment reinforcement on soft ground and soft ground surface treatment work, etc.
Please let us know if you want to ask more...
・product number
・quantity
・delivery address
・your information(name, address, telephone number)
- 販売単位：
- Price :
- Please contact us

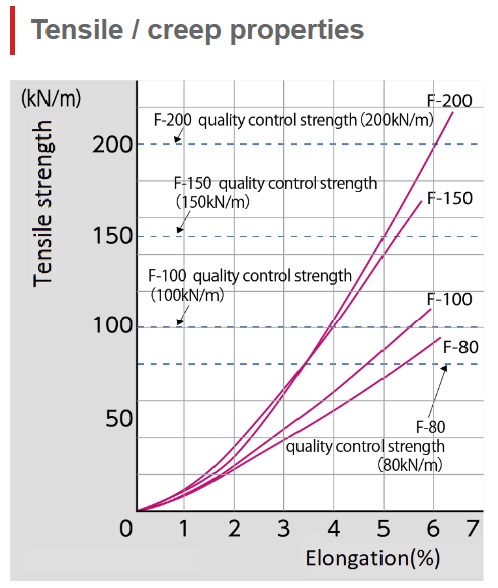

| Product No. | F-80 | F-100 | F-150 | F-200 | |
| Mesh(mm) | 18×16 | 18×16 | 18×16 | 18×16 | |
| Width(m) | 2.0 | 2.0 | 2.0 | 2.0 | |
| Length(m) | 50 | 50 | 50 | 50 | |
| Quality control strength(kN/m)*1 | (kN/m) | 80×80 | 100×100 | 150×100 | 200×100 |
| (tf/m) | 8.0×8.0 | 10.0×10.0 | 15.0×10.0 | 20.0×10.0 | |
| Elongation(%) | 6.0×15.0 | 6.0×15.0 | 6.0×15.0 | 6.0×15.0 | |
| Product standard strength (kN/m)*2 | (kN/m) | 75 | 90 | 140 | 180 |
| (tf/m) | 7.5 | 9.0 | 14.5 | 18.5 | |

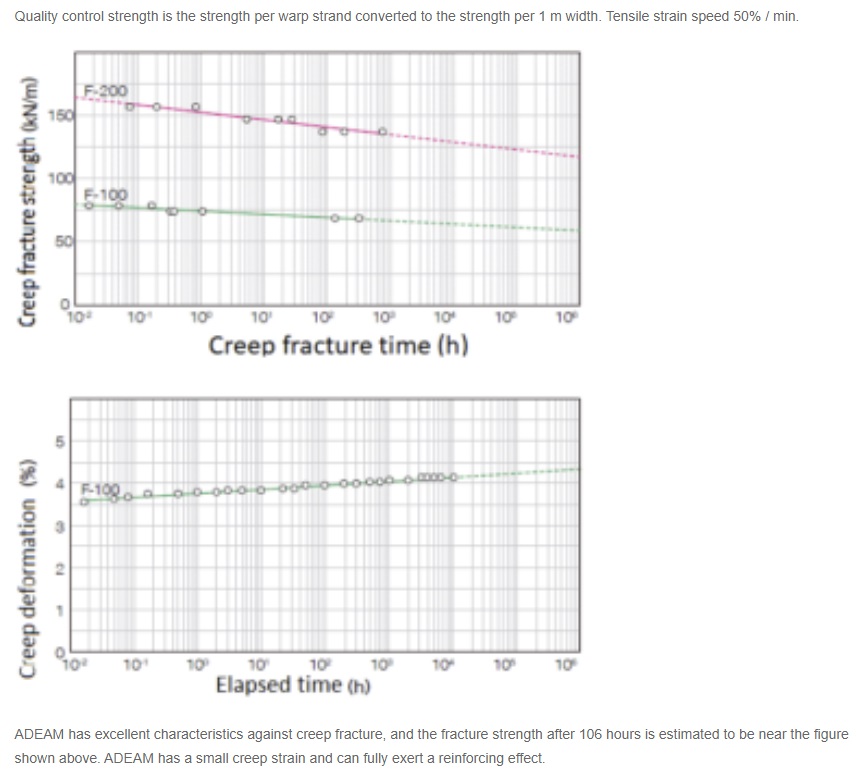

| The Limit tensile strength (kN/m) considering creep | (kN/m) | 44 | 54 | 87 | 110 |
| (tf/m) | 4.5 | 5.4 | 8.7 | 11.1 | |
* 1 Quality control strength: Standard strength in quality control tests (width of speciment [1 strand] / tensile strain speed [50% / min]) to check quality during product manufacturing under standard test environment
* 2 Product standard strength: The base strength for designing reinforced soil with ADEAM, and is the standard strength in performance confirmation tests (test specimen width [wide- width 20 cm] / tensile strain speed [1% / min].
Characteristics
●High strength and low elongation characteristics enables to confine the soil, and build a safe embankment.
●Excellent friction with soil
●Excellent weather resistance, chemical resistance, cold / heat resistance and impact resistance
