Pile Driver KH192 Maruzenkogyo Item No. MAR-021E
Pile Driver KH192
Light weight model specialized for pilling steel pile
Only 20kg but perfect for pilling small diameter pipes.
(Cap adapter unnecessary)
Please let us know if you want to ask more...
・your information(name, address, telephone number)
・quantity
・delivery address
- 販売単位：
- Price :
- Please contact us
| MODEL | KH192 |
| dimensions(mm) | 598×273×146 |
| weight(kg) | 20 |
| working pressure(MPa) | 8～11 |
| maximum pressure(MPa) | 20.6 |
| oil range(ℓ/min) | 20～22 |
| allowable back pressure(MPa) | 2.5 |
| coupling | 3/8inch couplers |
| hydraulic oil | ISO VG32 or equivalant |
| max hose length(m) | 3/8"×20 |
| blow per minute(bpm) | 1920(at 20L/min) |
HOW TO USE
Make sure this pile driver is being connected to a suitable power source before operating.
Preparation
1. Connect the pile driver with hydraulic power source with extension hoses

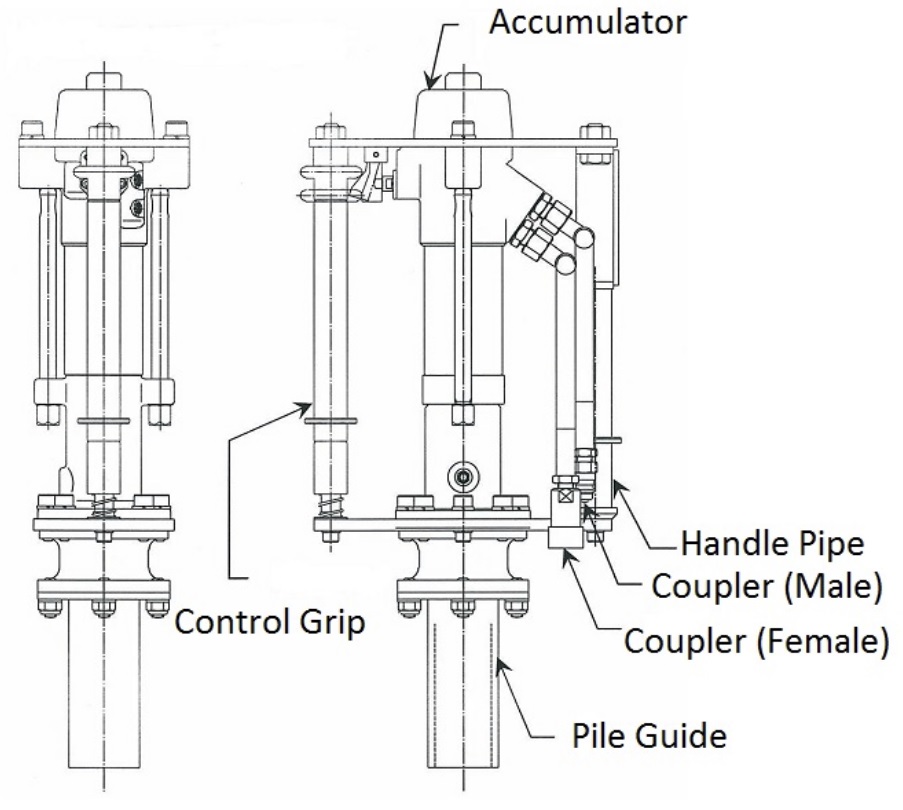

2. Attaching ∅4mm(or more) lifting wires on top plate to lift the pile driver. (Refer to the Illustration on the right)
3. Set pile or pole which you intend to drive vertically to the ground.
Set the pile guide on the top of the pile or pole which you intend to drive.
Operation
4. Start the power unit or other power source.
5. Slightly releasing lifting wires in order to start operating.
6. Hold on handle grip and control grip with both hands.
To start operating, pressure down the pile driver and control grip.
7. Release control grip when intend to stop the machine.
After the operation
8. Stop the power unit or power source.
9. Remove the extension hoses.
10. For preventing dust, dirt entering the extension hoses, attach both sides of the couplers on extension hose to each other.
11. Clean and wide out dirt and dust on pile driver.
MAINTENANCE
1. Daily Inspection
(1) Be certain there is no oil leakage from hoses or main body.
(2) Be certain there are no injuries, cracks or damages on top plate.
(3) Be certain nuts on pile guide is firmly tightened.

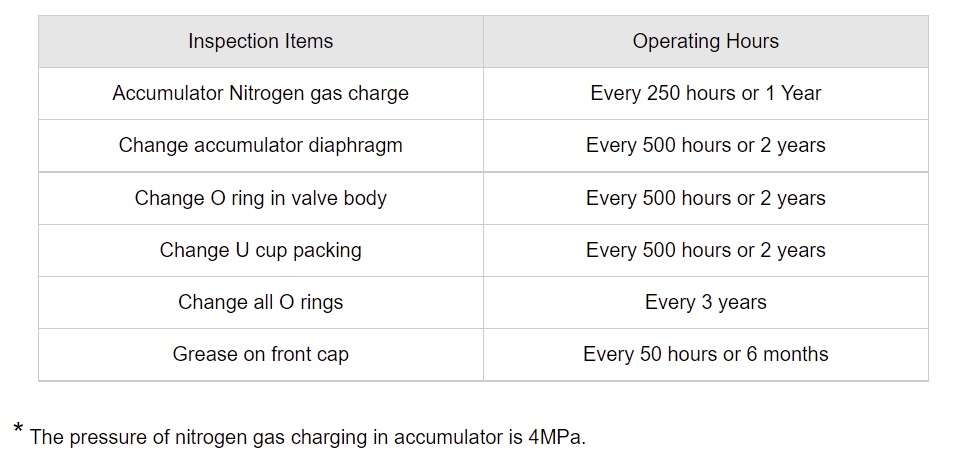

2. Periodically Inspection
Ask your Maruzen nearest dealers for the following maintenance.
